Velopedia Bicycle Archive

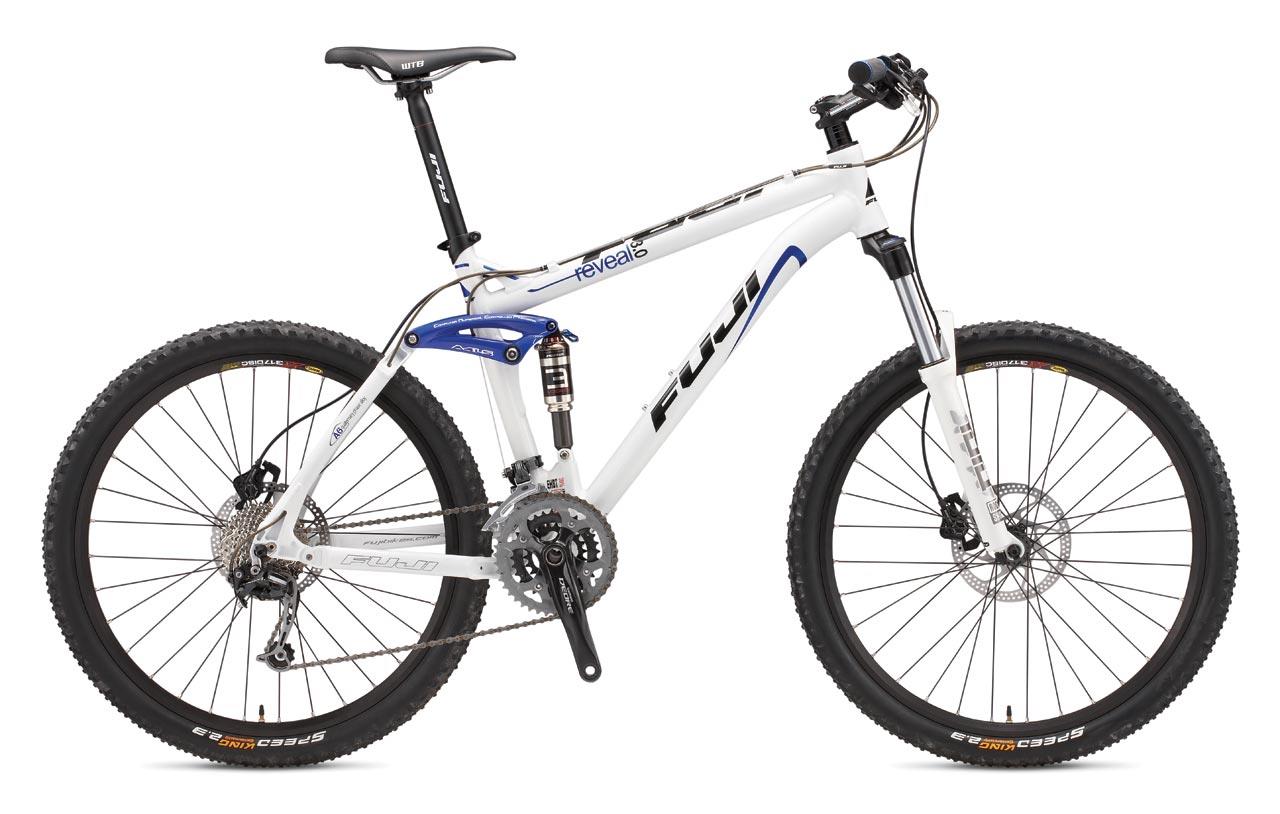

2010 Fuji Reveal 3.0
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $1,525.00
- Sizes
- S, M, L
- Colors
- White
- Weight
- 31
- Archive ID
- 20158
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | A-6 Quaternary aluminum |
| Fork | RockShox Tora 302 U-Turn, 80 - 130mm adjustable travel |
| Fork Material | Single crown |
| Rear Shock | SR Suntour Epicon LOD, 130mm travel |
Drivetrain
| Component Group | Shimano Deore |
|---|---|
| Shifters | Shimano Deore Rapidfire |
| Front Derailleur | Shimano Deore, clamp on 34.9mm |
| Rear Derailleur | Shimano Deore |
| Crankset | Shimano Deore, 22/32/44 teeth |
| Bottom Bracket | Shimano external bearing |
| Cassette | Shimano HG-50 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | KMC HG-73 |
| Pedals | Not included |
Brakes
| Brakes | Shimano BR-M486 Hydraulic Disc, 180mm Centerlock rotor brakes, Shimano BL-M486 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated VP A-42E |
|---|---|
| Handlebar | Fuji CGC Alloy 15mm Riser |
| Handlebar Extensions | Not included |
| Stem | Fuji CGC Forged Alloy |
| Saddle | WTB Silverado Comp |
| Seatpost | Fuji CGC Forged Alloy, 350mm |
Wheels & Tires
| Hubs | Front: Shimano HB-M495 Sealed Bearing CenterLock, Rear: Shimano FH-M495 Sealed Bearing CenterLock |
|---|---|
| Rims | WTB Speed Disc All-Mountain, 32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Front Tire | 26 x 2.3" Continental Speed King |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
