Velopedia Bicycle Archive

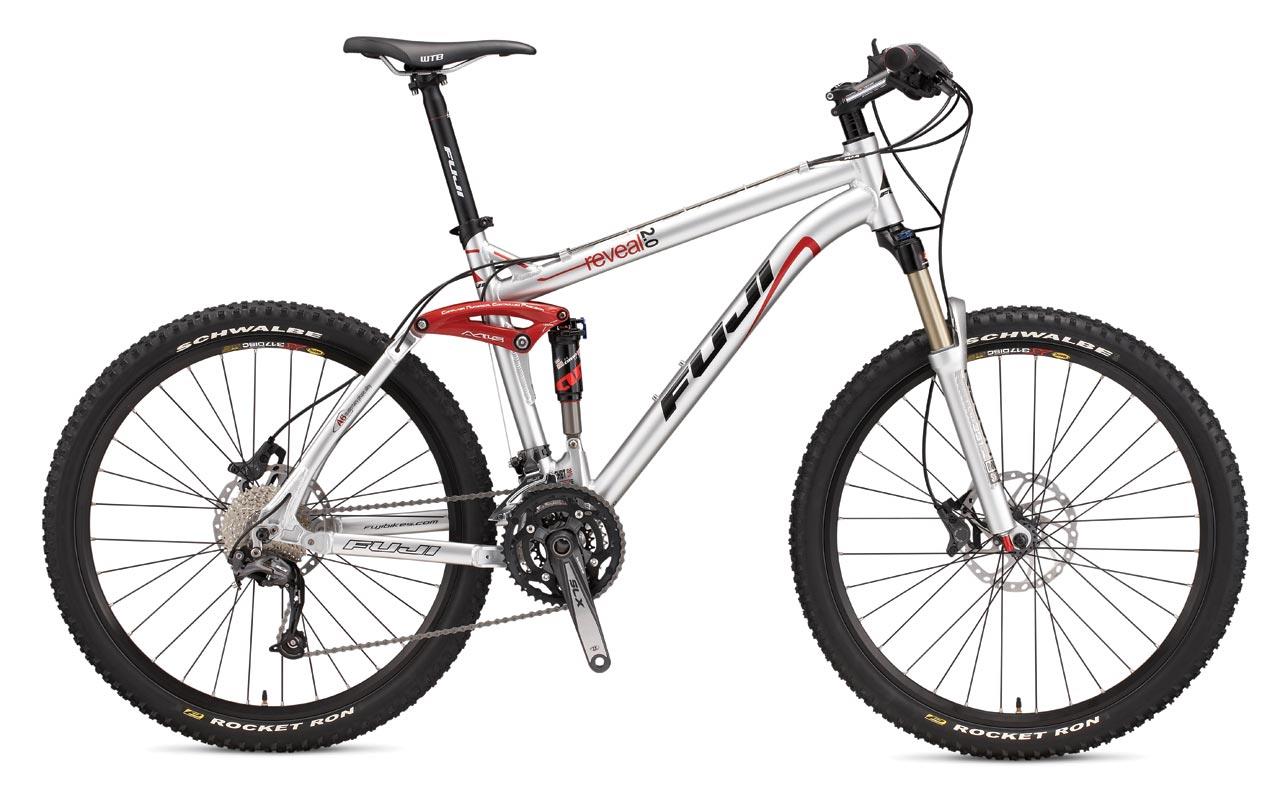

2010 Fuji Reveal 2.0
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $2,200.00
- Sizes
- S, M, L
- Colors
- Quick Silver
- Weight
- 29.05
- Archive ID
- 20157
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | A-6 Quaternary aluminum |
| Fork | RockShox Recon 335 Solo Air w/ PopLoc, 130mm travel |
| Fork Material | Single crown |
| Rear Shock | RockShox Ario 3.2 w/ 2 Position switch Lock Out, 130mm travel |
Drivetrain
| Component Group | Shimano SLX |
|---|---|
| Shifters | Shimano SLX RapidFire |
| Front Derailleur | Shimano SLX, clamp on 34.9mm |
| Rear Derailleur | Shimano SLX |
| Crankset | Shimano SLX, 22/32/44 teeth |
| Bottom Bracket | Shimano external bearing |
| Cassette | Shimano HG61 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Shimano HG-73 |
| Pedals | Not included |
Brakes
| Brakes | Shimano SLX disc w/180mm Centerlock rotor brakes, Shimano SLX Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated VP A-42E |
|---|---|
| Handlebar | Fuji CGC Alloy 15mm Riser |
| Handlebar Extensions | Not included |
| Stem | Fuji CGC Forged Alloy |
| Saddle | WTB Silverado Comp |
| Seatpost | Fuji CGC Forged Alloy, 350mm |
Wheels & Tires
| Hubs | Shimano SLX centerlock disc |
|---|---|
| Rims | Mavic XM-317 Disc, 32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Front Tire | 26 x 2.25" Schwalbe Rocket Ron |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
