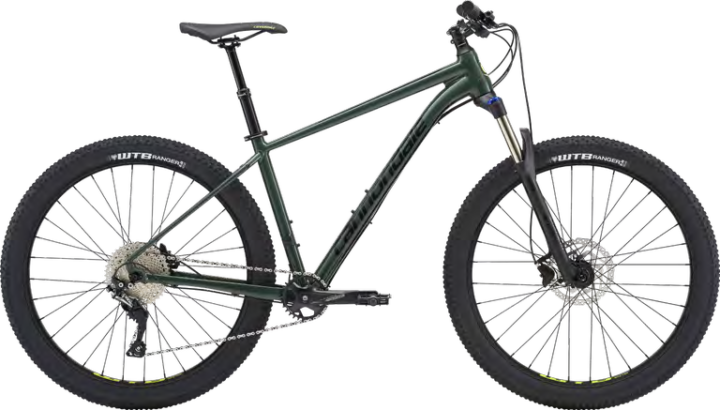

2020 Cannondale Cujo 2

Archived: 2020 Cannondale Cujo 2 · Mountain · Published sizes: XS, S, M, L, XL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: SmartForm C2 Alloy, SAVE, Boost spacing, tapered 1-1/8” to 1.5” headtube, flat mount brake, StraightShot internal cable routing, BSA-73 · Fork: RockShox Judy Silver TK, 120mm, Solo Air, 15x110, tapered steerer, 51mm offset

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: RockShox Judy Silver TK, 120mm, Solo Air, 15x110, tapered steerer, 51mm offset

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Shifters: SRAM SX Eagle, 12-speed · Rear derailleur: SRAM SX Eagle · Crankset: SRAM SX Eagle, 30T · Bottom bracket: Truvativ Power Spline · Rear cogs: SRAM PG-1210, SX Eagle, 11-50, 12-speed · Chain: SRAM SX Eagle, 12-speed

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano MT200 hydro disc, 180/160mm RT10 rotors

• Inspect pads, rotors, calipers and the complete cable or hose path. Both levers should feel consistent and both calipers should release without persistent rubbing.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 27.5" · Rims: WTB STX i35, 32h · Hubs: (F) Shimano MT400 15x110, Boost 110 (R) Shimano MT200, Boost 141, QR · Front tire: WTB Ranger Comp, 27.5 x 2.8”, DNA Compound · Rear tire: WTB Ranger Comp, 27.5 x 2.8”, DNA Compound

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: Semi Integrated, 1-1/8” to 1-1/2” · Handlebar: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm · Stem: Cannondale 3, 6061 Alloy, 31.8, 7° · Seatpost: TranzX dropper, internal routing, 31.6, 80mm (XS), 100mm (S), 120mm (M-XL) · Saddle: Cannondale Stage 3 · Pedals: Cannondale Platform

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Cycle the dropper post repeatedly. It should reach full travel, remain extended under load and have no unusual oil, excessive rotational play or damaged remote, cable, hose or battery.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
