2019 Cannondale Quick CX 1
Original specifications: 700c wheels · geometry for 5 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900002774- Model year
- 2019
- Category
- Hybrid
- Sizes
- S, M, L, XL, XXL
- Colors
- Jet Black w/ Anthracite, Volt - Gloss (BLK)
- Geometry
- 5 manufacturer sizes
- In this record
- 23 specifications · archived image · geometry
Model history 6 other years
Browse other years
Compare side by side
Identification clues
2019 archived details
- Published colors
- Jet Black w/ Anthracite, Volt - Gloss (BLK)
- Frame
- Aluminum
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAluminum · 700c
Frameset
| Frame Construction | Quick CX, SmartForm C2 Alloy, SAVE, 1-1/2” to 1-1/8” tapered head tube |
|---|---|
| Frame Material | Aluminum |
| Fork | SR Suntour NCX w/ lockout, 50mm, 1-1/2”- 1-1/8” tapered steerer |
Drivetrain
| Shifters | Shimano SLX, 2x11 |
|---|---|
| Front Derailleur | Shimano SLX |
| Rear Derailleur | Shimano XT |
| Crankset | FSA V-Drive, 38/28 |
| Bottom Bracket | FSA Cartridge |
| Rear Cogs | Shimano SLX, 11-40, 11-speed |
| Chain | KMC X11, 11-speed, Anti-rust |
| Pedals | Cannondale Fitness Reinforced Composite |
Brakes
| Brakes | Shimano M396 hydro disc, 160/160mm |
|---|
Cockpit & Contact Points
| Headset | VP Si 1-1/2”- 1-1/8” |
|---|---|
| Handlebar | Cannondale C3, 6061 double-butted, 20mm rise, 9° back, 680mm |
| Stem | Cannondale C3, 6061 Alloy, 31.8, 12° |
| Saddle | Cannondale Quick CX Ergo |
| Seatpost | Cannondale C3, 6061 Alloy, 27.2 x 350mm |
Wheels & Tires
| Hubs | Alloy Disc, sealed, loose ball bearings, QR, 32h |
|---|---|
| Rims | DC 3.0, double wall w/eyelet, 32h |
| Spokes | Stainless Steel, 14g |
| Front Tire | Panaracer Comet Hardpack, 700 x 38c |
| Rear Tire | Panaracer Comet Hardpack, 700 x 38c |
| Wheel Size | 700c |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements5 sizes · 15 measurements
| Measurement | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Seat tube | 400 mm | 450 mm | 500 mm | 550 mm | 600 mm |
| Effective top tube | 567 mm | 581 mm | 595 mm | 608 mm | 622 mm |
| Head tube | 107 mm | 123 mm | 141 mm | 158 mm | 172 mm |
| Head-tube angle | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° |
| Seat-tube angle | 73° | 73° | 73° | 73° | 73° |
| Chainstay / rear center | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1078 mm | 1093 mm | 1109 mm | 1123 mm | 1138 mm |
| Bottom-bracket drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Bottom-bracket height | 293 mm | 293 mm | 293 mm | 293 mm | 293 mm |
| Reach | 389 mm | 398 mm | 407 mm | 415 mm | 425 mm |
| Stack | 584 mm | 599 mm | 616 mm | 632 mm | 645 mm |
| Standover height | 719 mm | 757 mm | 795 mm | 833 mm | 869 mm |
| Fork offset / rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Front center | 635 mm | 650 mm | 665 mm | 679 mm | 694 mm |
| Trail | 84 mm | 84 mm | 84 mm | 84 mm | 84 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 38c

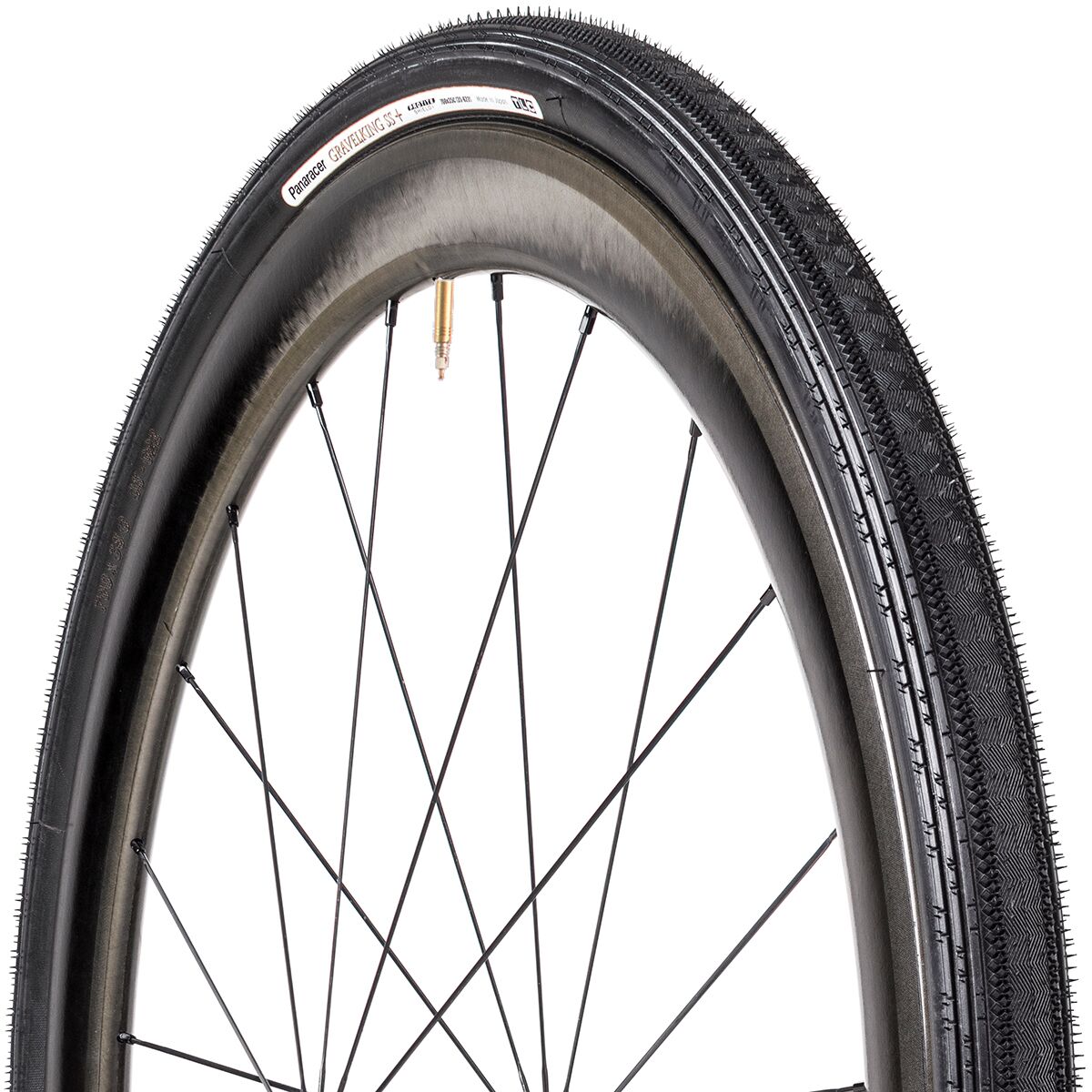

Panaracer Gravelking SS+ Tire - Tubeless Black, 700x38
700x38c
Replacement option

Shimano XT RD-M8130 11-Speed Rear Derailleur Black, SGS, 11-Speed
Specification match
6061 Alloy, 27.2 x 350mm

Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
More parts (5)Fewer parts
11-40, 11-speed
38/28
2x11
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Panaracer Comet Hardpack, 700 x 38c
- Rear tire
- Panaracer Comet Hardpack, 700 x 38c
- Drivetrain
- 11-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- FSA Cartridge
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Quick CX, SmartForm C2 Alloy, SAVE, 1-1/2” to 1-1/8” tapered head tube · Fork: SR Suntour NCX w/ lockout, 50mm, 1-1/2”- 1-1/8” tapered steerer
Suspension
Evaluate the suspension →Archived: Fork: SR Suntour NCX w/ lockout, 50mm, 1-1/2”- 1-1/8” tapered steerer
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano SLX, 2x11 · Front derailleur: Shimano SLX · Rear derailleur: Shimano XT · Crankset: FSA V-Drive, 38/28 · Bottom bracket: FSA Cartridge · Rear cogs: Shimano SLX, 11-40, 11-speed · Chain: KMC X11, 11-speed, Anti-rust
Brakes
Inspect the brakes →Archived: Brakes: Shimano M396 hydro disc, 160/160mm
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Rims: DC 3.0, double wall w/eyelet, 32h · Hubs: Alloy Disc, sealed, loose ball bearings, QR, 32h · Front tire: Panaracer Comet Hardpack, 700 x 38c · Rear tire: Panaracer Comet Hardpack, 700 x 38c
Controls and contact points
Archived: Headset: VP Si 1-1/2”- 1-1/8” · Handlebar: Cannondale C3, 6061 double-butted, 20mm rise, 9° back, 680mm · Stem: Cannondale C3, 6061 Alloy, 31.8, 12° · Seatpost: Cannondale C3, 6061 Alloy, 27.2 x 350mm · Saddle: Cannondale Quick CX Ergo · Pedals: Cannondale Fitness Reinforced Composite
