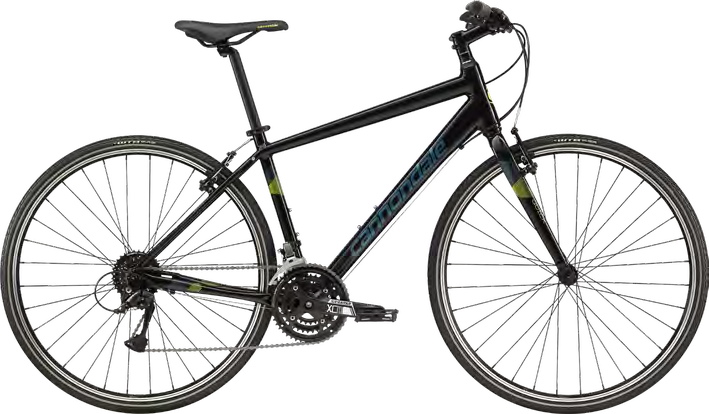

2019 Cannondale Quick 6

Archived: 2019 Cannondale Quick 6 · Hybrid/Comfort · Published sizes: S, M, L, XL, XXL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Quick, SmartForm C3 Alloy, SAVE, 1-1/8” headtube · Fork: Quick, Alloy, 1-1/8” steerer, 55mm offset · Aluminum

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: Shimano Easy Fire EF65, 3x9 · Front derailleur: Shimano Altus, 31.8 clamp · Rear derailleur: Shimano Acera · Crankset: SR Suntour XCM, 48/36/26 · Bottom bracket: Tange Cartridge · Rear cogs: Shimano, 11-32, 9-speed · Chain: KMC Z99, 9-speed

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Cannondale V-Brake

• Inspect pads, cables and housings, then examine both rim braking surfaces for concavity, cracking or heavy wear. Confirm each caliper returns and centers correctly.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 700c · Rims: Cannondale C4, double wall, 32h · Hubs: Alloy, sealed, loose ball bearings, QR, 32h · Front tire: WTB Slick, 700 x 32c, puncture protection, reflective sidewall · Rear tire: WTB Slick, 700 x 32c, puncture protection, reflective sidewall

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: FSA Sealed Bearing · Handlebar: Cannondale C4, 6061 double-butted, 25mm rise, 8° sweep, 6° rise, 640mm · Stem: Cannondale C4, 6061 Alloy, 31.8, 12° · Seatpost: Cannondale C4, 6061 Alloy, 27.2 x 350mm · Saddle: Cannondale Fitness Ergo Double Density · Pedals: Cannondale Fitness

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
