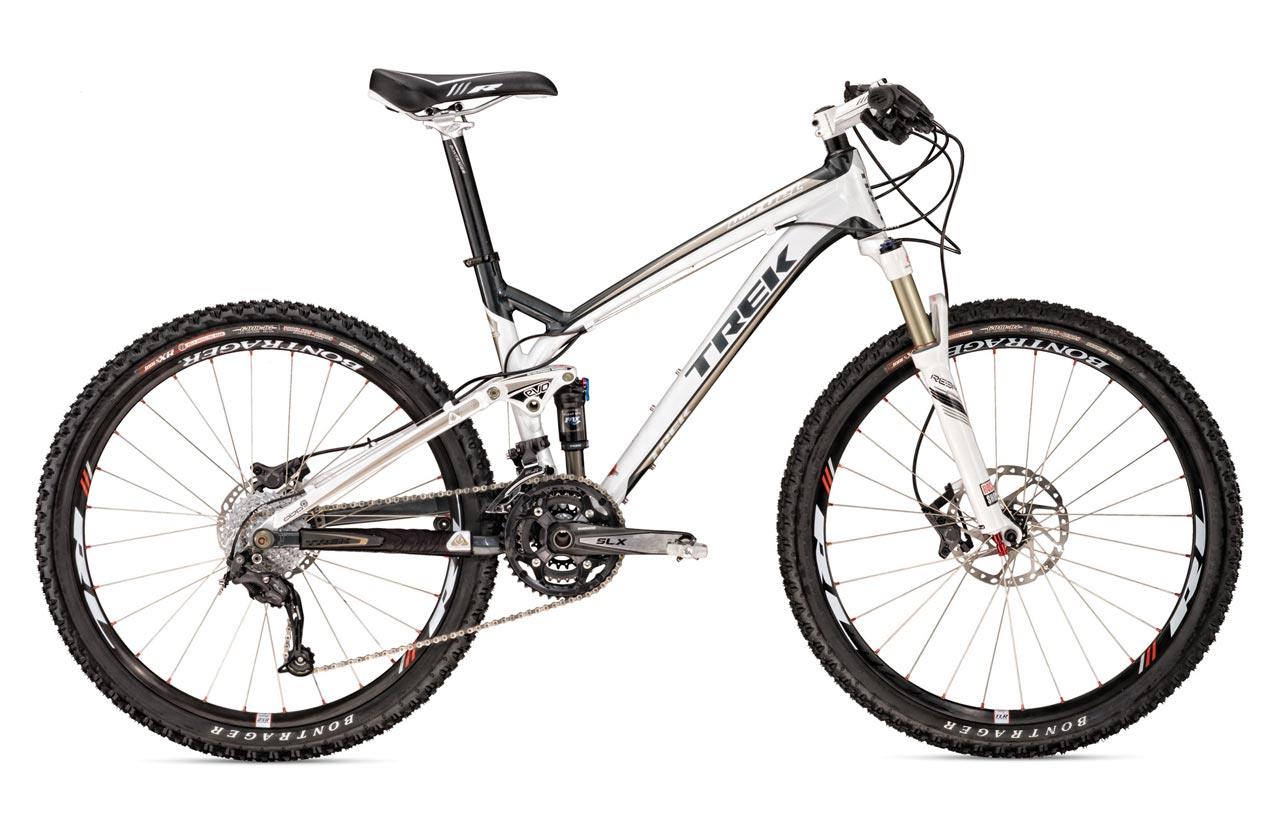

2010 Trek Top Fuel 8 WSD
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $3,149.99
- Sizes
- Womens 14.5", womens 15.5", womens 16.5", womens 17.5"
- Colors
- Pearl White/Lava Black
- Archive ID
- 19969
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | WSD Alpha Red Aluminum |
| Fork | RockShox Reba SL, 100mm travel |
| Fork Material | Magnesium/aluminum, single crown crown |
| Rear Shock | Fox Float RP2, 100mm travel |
Drivetrain
| Component Group | Shimano SLX mix |
|---|---|
| Shifters | Shimano SLX |
| Front Derailleur | Shimano SLX |
| Rear Derailleur | Shimano SLX Shadow |
| Crankset | Shimano SLX, 44/32/22 teeth |
| Cassette | SRAM PG-970 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Pedals | Crank Brothers Custom Candy C |
Brakes
| Brakes | Shimano SLX disc brakes, Shimano SLX Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Cane Creek ZS-3 |
|---|---|
| Handlebar | Bontrager Race Flat |
| Handlebar Extensions | Not included |
| Stem | Bontrager Race Lite |
| Saddle | Bontrager Race WSD |
| Seatpost | Bontrager Race Lite, 31.6mm diameter |
Wheels & Tires
| Hubs | Bontrager Race Lite Centerlock Disc |
|---|---|
| Rims | Bontrager Race Lite Disc |
| Front Tire | Front: 26 x 2.25" Bontrager Jones XR, Rear: 26 x 2.00" Bontrager Jones XR |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
