Velopedia Bicycle Archive

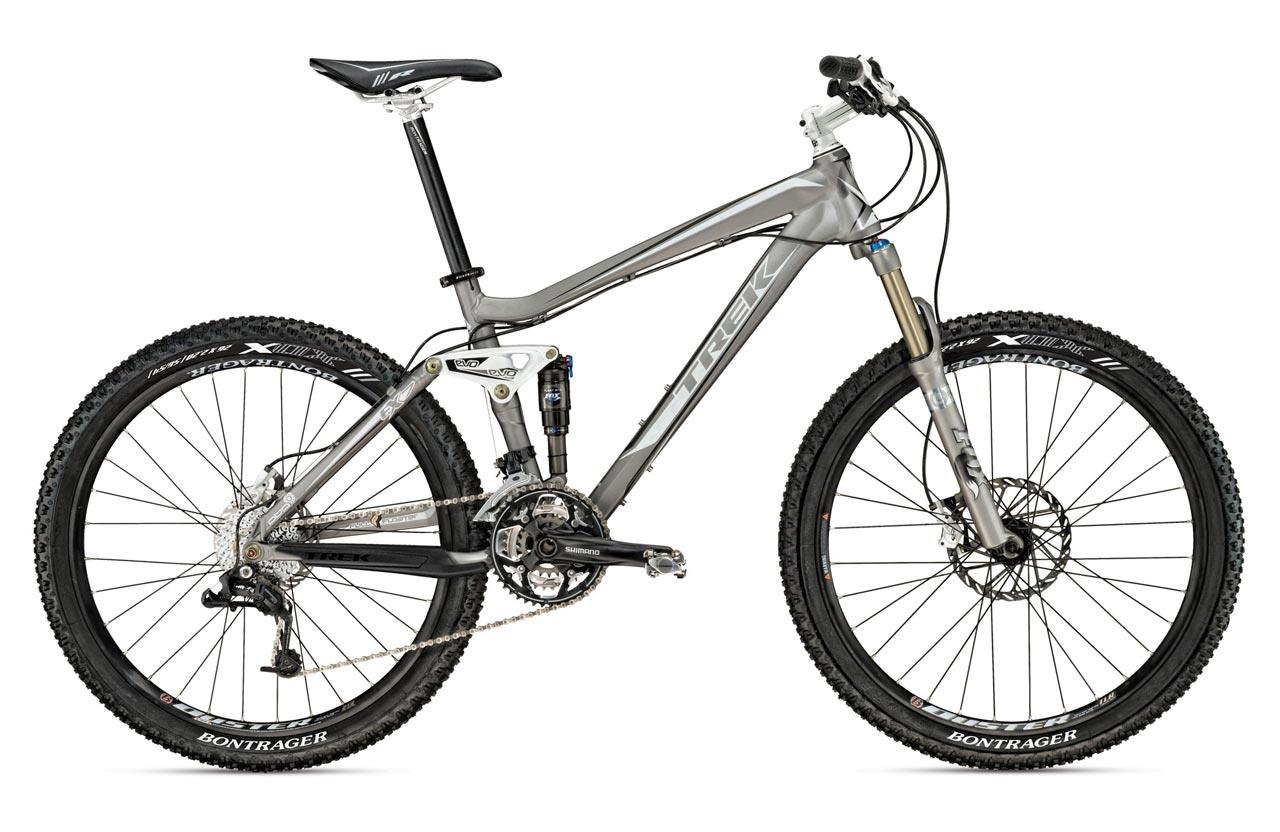

2010 Trek Fuel EX 7
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $2,049.99
- Sizes
- 15.5", 17.5", 18.5", 19.5", 21.5"
- Colors
- Matte Titanium
- Archive ID
- 19975
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Alpha Red Aluminum |
| Fork | Fox 32 F-series RL, 120mm travel |
| Fork Material | Alloy, single crown crown |
| Rear Shock | Fox Float RP2, 120mm travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | SRAM X.5 Trigger |
| Front Derailleur | Shimano Deore |
| Rear Derailleur | SRAM X.7 |
| Crankset | Shimano M542, 44/32/22 teeth |
| Cassette | SRAM PG-950 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Pedals | Shimano M505 |
Brakes
| Brakes | Avid Juicy 3.5 Disc brakes, Avid Juicy 3.5 hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" - 1 1/2" FSA No. 57E |
|---|---|
| Handlebar | Bontrager Race Riser |
| Handlebar Extensions | Not included |
| Stem | Bontrager Race Lite |
| Saddle | Bontrager Race |
| Seatpost | Bontrager Race, 31.6mm diameter |
Wheels & Tires
| Hubs | Front: Bontrager Select, Rear: Shimano M525-L |
|---|---|
| Rims | Bontrager Duster |
| Front Tire | 26 x 2.20" Bontrager XDX |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
