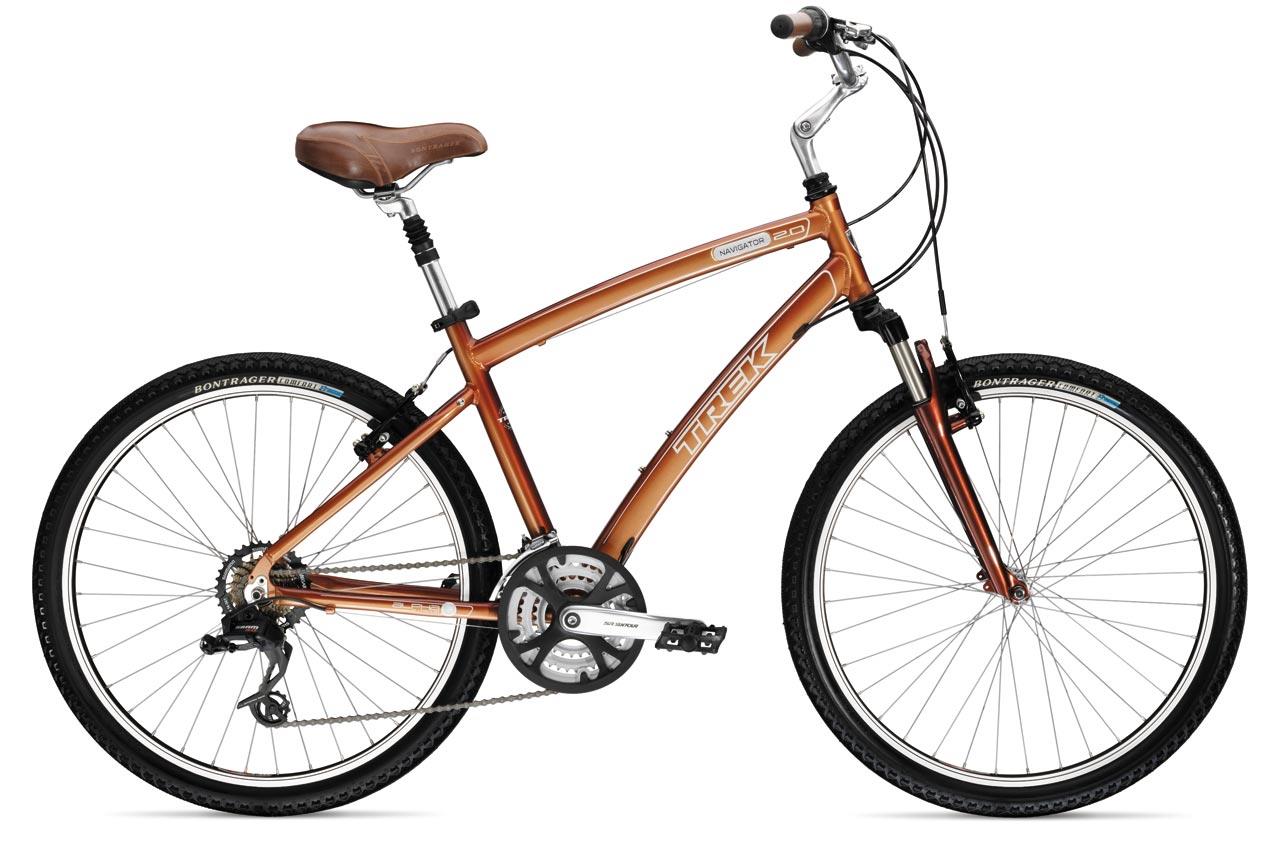

2009 Trek Navigator 2.0
Comfort/commuter bicycle from the Velopedia specification archive.
- Original MSRP
- $429.99
- Sizes
- 14.5", 16.5", 18", 21"
- Colors
- Root Beer Duotone, Black Duotone
- Archive ID
- 17777
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Alpha White Aluminum |
| Fork | RST Neon T9, 50mm travel |
| Rear Shock | N/A |
Drivetrain
| Shifters | SRAM 3.0 Comp |
|---|---|
| Front Derailleur | Shimano C102 |
| Rear Derailleur | SRAM ESP 3.0 |
| Crankset | Shimano M151 w/chainguard, 28/38/48 teeth |
| Cassette | Shimano |
| Rear Cogs | 7-speed, 14 - 34 teeth |
| Pedals | Dual density platform |
Brakes
| Brakes | Tektro V-brake brakes, Tektro V-brake levers |
|---|
Cockpit & Contact Points
| Headset | Threaded Slimstack |
|---|---|
| Handlebar | Steel |
| Handlebar Extensions | Not included |
| Stem | Alloy Adjustable |
| Saddle | Bontrager Suburbia |
| Seatpost | Alloy Micro adjust Suspension |
Wheels & Tires
| Hubs | Alloy |
|---|---|
| Rims | Matrix 550, 36-hole |
| Front Tire | 26 x 1.95" Bontrager Comfort |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
