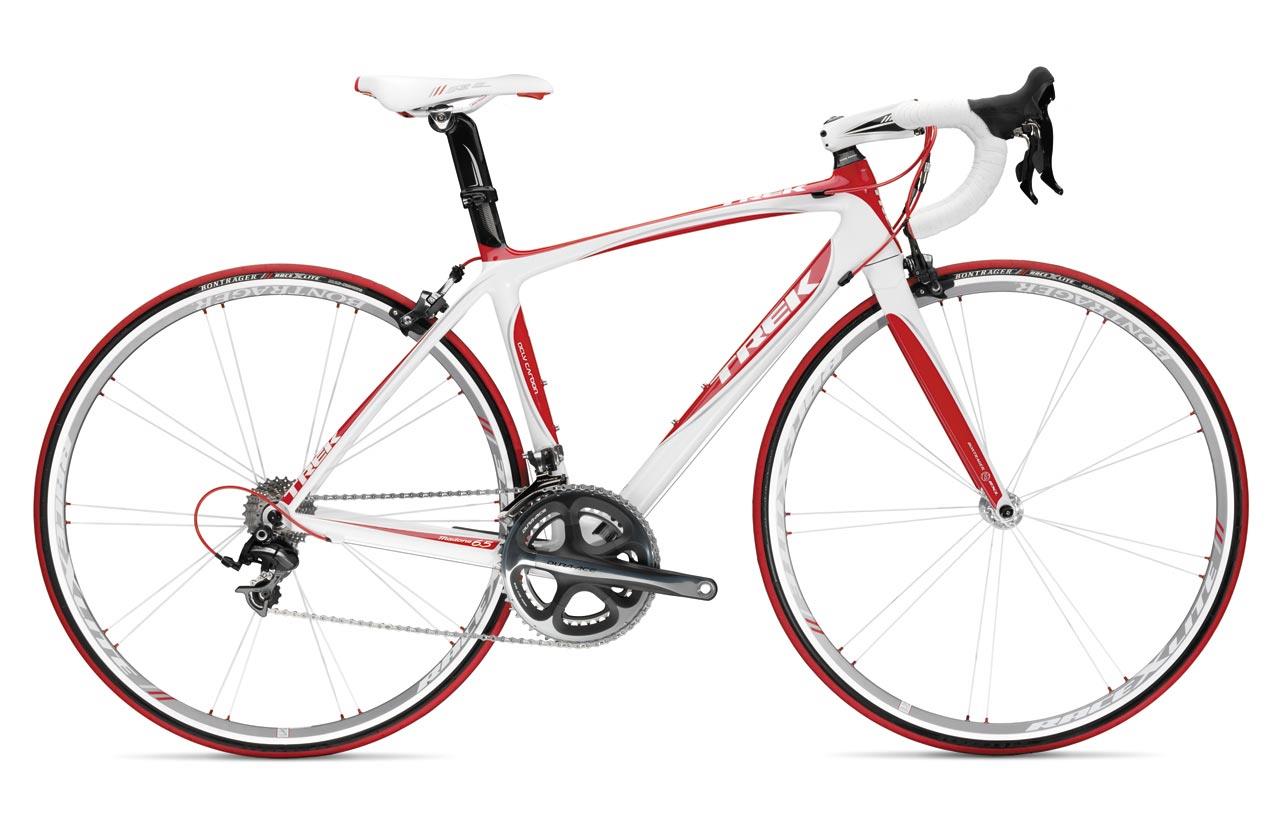

2009 Trek Madone 6.5 WSD
Road race & triathlon bicycle from the Velopedia specification archive.
- Original MSRP
- $6,929.99
- Sizes
- Womens 47cm, womens 51cm, womens 54cm, womens 57cm
- Colors
- Pearl White/Red
- Archive ID
- 17496
Frameset
| Frame Construction | Bonded |
|---|---|
| Frame Material | OCLV Red Carbon |
| Fork | Bontrager Race XXX Lite |
| Fork Material | Carbon/carbon steerer, aero crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano Dura-Ace |
|---|---|
| Shifters | Shimano Dura-Ace STI |
| Front Derailleur | Shimano Dura-Ace, 34.9mm clamp |
| Rear Derailleur | Shimano Dura-Ace |
| Crankset | Bontrager Race X Lite Carbon, 34/50 teeth |
| BB Shell Width | 90mm |
| Cassette | Shimano Dura-Ace |
| Rear Cogs | 10-speed, 11 - 28 teeth |
| Pedals | N/A |
Brakes
| Brakes | Shimano Dura-Ace brakes, Shimano Dura-Ace STI levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" - 1 1/2" integrated Cane Creek IS-8 |
|---|---|
| Handlebar | Bontrager Race X Lite Blade Carbon |
| Handlebar Extensions | Not included |
| Stem | Bontrager Race XXX Lite |
| Saddle | Bontrager Race Lite FIT |
| Seatpost | Carbon seat mast cap |
Wheels & Tires
| Hubs | Bontrager Race X Lite |
|---|---|
| Rims | Bontrager Race X Lite |
| Front Tire | 700 x 23c Bontrager Race X Lite |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
