Velopedia Bicycle Archive

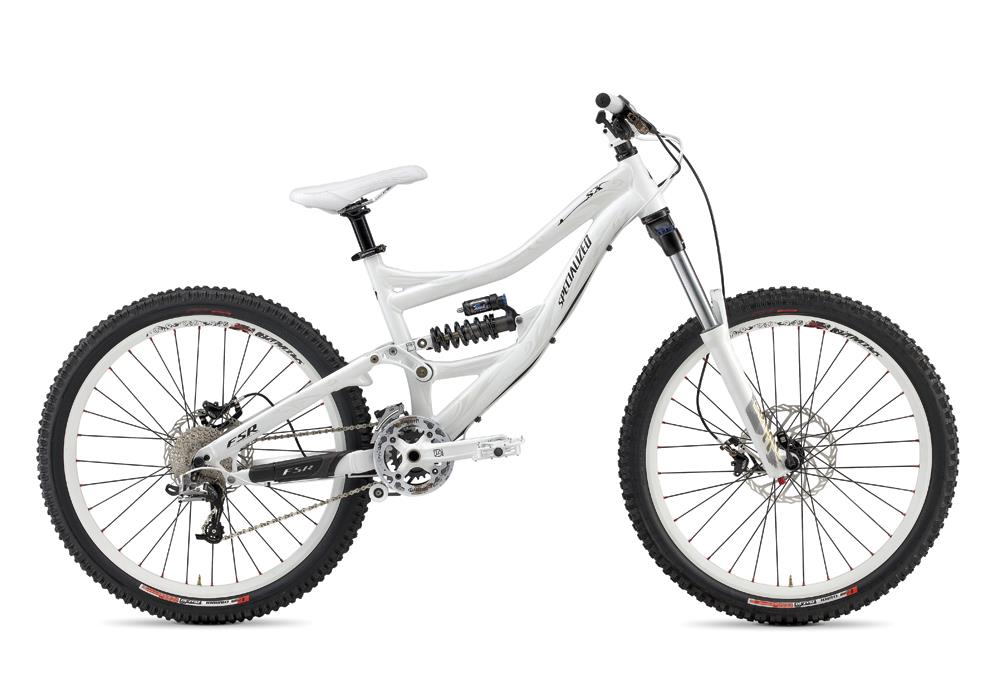

2010 Specialized SX Trail I
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- Small, medium, large
- Colors
- White
- Archive ID
- 21836
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | M5 aluminum |
| Fork | RockShox Domain 318 coil, 160mm travel |
| Rear Shock | Fox DHX 4.0 Coil, 170mm travel |
Drivetrain
| Component Group | Freeride Mix |
|---|---|
| Shifters | SRAM X-5 Trigger |
| Front Derailleur | Shimano SLX FD-M660, DMD |
| Rear Derailleur | SRAM X-9 Mid-cage |
| Crankset | FSA Moto-X MegaExo, 24/36 with Gamut guard teeth |
| Bottom Bracket | FSA BB-7000 |
| BB Shell Width | 73mm English |
| Cassette | Shimano HG61 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | SRAM PC-971, 1/2 x 3/32" |
| Pedals | Specialized Lo-Pro alloy |
Brakes
| Brakes | Avid Elixir R brakes, Avid Elixir R levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" - 1 1/2" 1 1/8" cartridge upper, 11/2" cartridge lower |
|---|---|
| Handlebar | Specialized Demo low-rise 31.8mm |
| Stem | Specialized, 35mm Extension |
| Saddle | Specialized Enduro, 8mm Cr-Mo rails |
| Seatpost | 6061 alloy two-bolt, 30.9mm diameter |
Wheels & Tires
| Hubs | Front: Specialized Hi Lo disc, 20mm Thru-axle, Rear: Thru-axle 135mm, with RD guard |
|---|---|
| Rims | DT Swiss F550 |
| Spokes | DT Swiss Champion stainless, 14ga. (2.0mm) |
| Front Tire | Front: 26 x 2.3" Specialized Clutch SX, Rear: 26 x 2.3" Specialized Chunder SX |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
