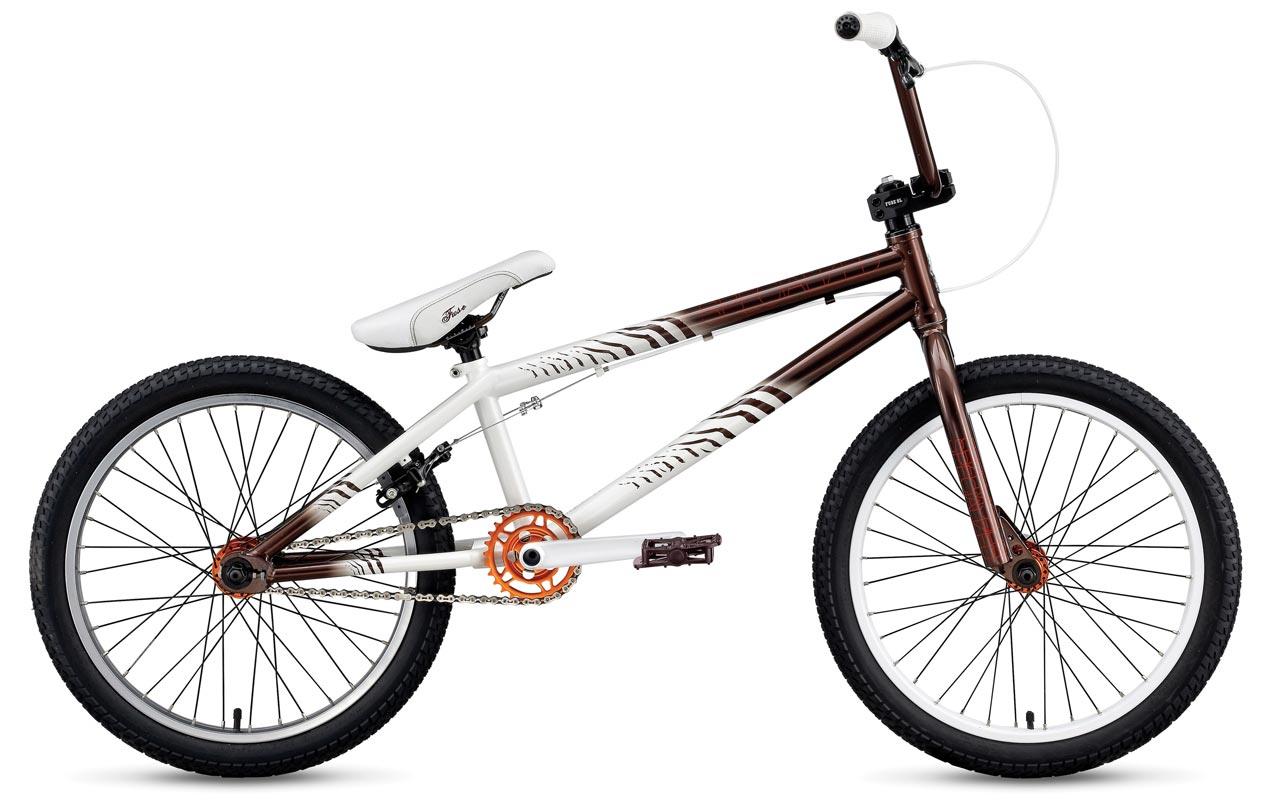

2009 Specialized Fuse 4 AC
BMX bicycle from the Velopedia specification archive.
- Original MSRP
- $770.00
- Sizes
- 21" TT
- Colors
- Gloss Brown
- Archive ID
- 15731
Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | Double butted chromoly |
|---|
| Fork Material | Chromoly, unicrown crown |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | BMX |
|---|
| Shifters | N/A |
|---|
| Front Derailleur | N/A |
|---|
| Rear Derailleur | N/A |
|---|
| Crankset | Fuse SP, 2-piece Sanko Cr-Mo, 28 teeth |
|---|
| Bottom Bracket | Mid BB, 152mm spindle |
|---|
| Cassette | Cassette driver |
|---|
| Rear Cogs | 1-speed, 10 teeth |
|---|
| Chain | KMC Kool K-710 SL, 1/2 x 1/8" |
|---|
| Pedals | Specialized Lo Pro A1 |
|---|
Brakes
| Brakes | Tektro FX-15 U-brake rear brakes, Unspecified front/Tektro 275A two finger rear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" FSA Impact |
|---|
| Handlebar | Chromoly 8" |
|---|
| Handlebar Extensions | Not included |
|---|
| Stem | Specialized Fuse SL |
|---|
| Saddle | Specialized Fuse SL |
|---|
| Seatpost | Specialized alloy two bolt, 25.4mm diameter |
|---|
Wheels & Tires
| Hubs | Front: Specialized Fuse SL 14mm, Rear: Specialized Fuse SL cassette, 14mm |
|---|
| Rims | Specialized Fuse SL, 36-hole |
|---|
| Spokes | Stainless steel, 14ga. (2.0mm) |
|---|
| Spoke Nipples | Brass nipples |
|---|
| Front Tire | 20 x 2.10" Specialized Rhythm Lite Control |
|---|
| Wheel Size | 20" wheels |
|---|
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
