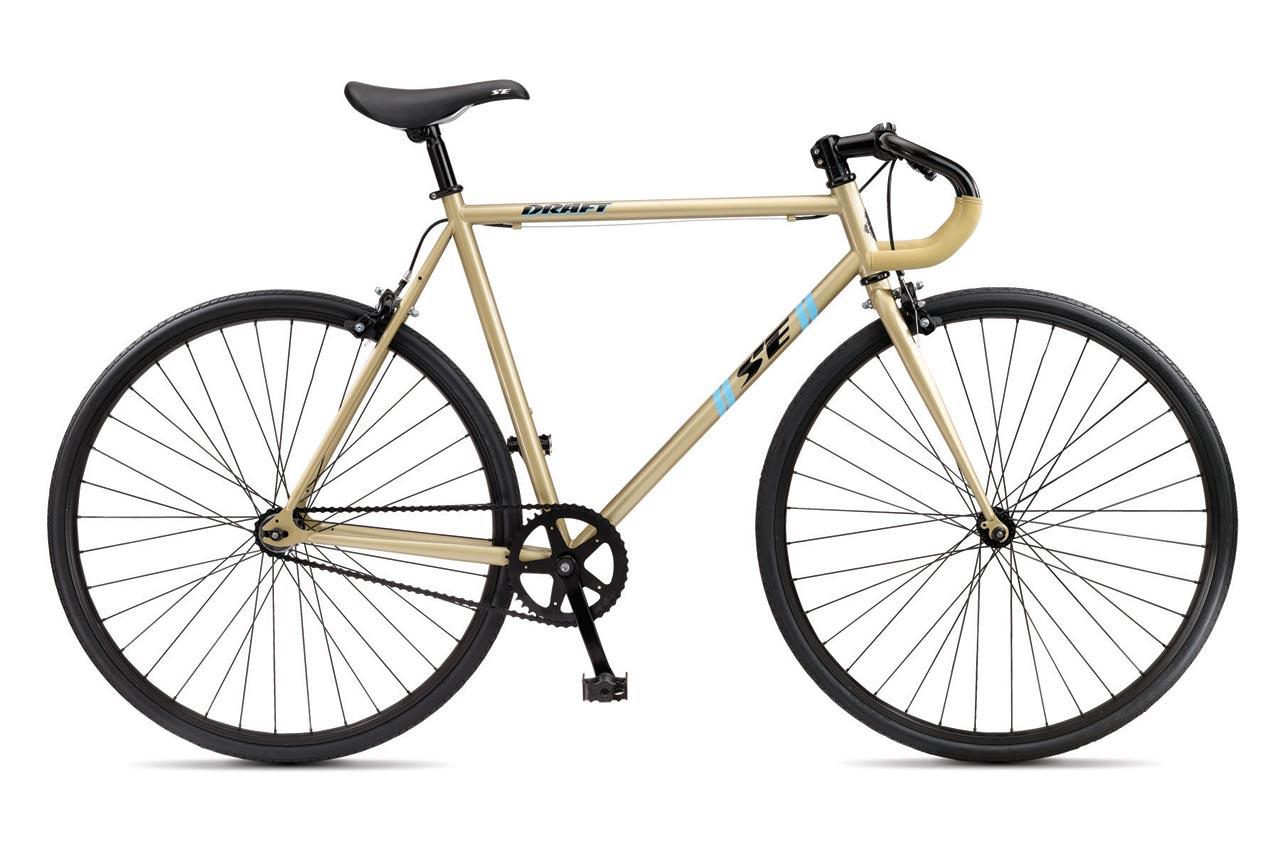

2010 SE Racing Draft
Track bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 47cm, 49cm, 52cm, 54cm, 56cm, 58cm, 61cm
- Colors
- Dirty Gold, Cool White
- Archive ID
- 20118
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Hi-tensile steel |
| Fork Material | Hi-tensile steel, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Track Mix |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | 3-pc alloy, 42 teeth |
| Bottom Bracket | Euro cartridge |
| Cassette | Freewheel |
| Rear Cogs | 1-speed, 16 teeth |
| Chain | KMC Z410 |
| Pedals | FPD resin w/alloy cage |
Brakes
| Brakes | Radius Alloy caliper brakes, Radius 2-finger alloy levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Tange Threadless |
|---|---|
| Handlebar | DSE Drop Bar |
| Handlebar Extensions | Not included |
| Stem | SE, 10-degree drop |
| Saddle | SE Classic |
| Seatpost | SE Straight Post, 27.2mm diameter |
Wheels & Tires
| Hubs | SE Nutted |
|---|---|
| Rims | Alex DC-25, 36-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 700 x 28c Kenda Kwest |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
