Velopedia Bicycle Archive

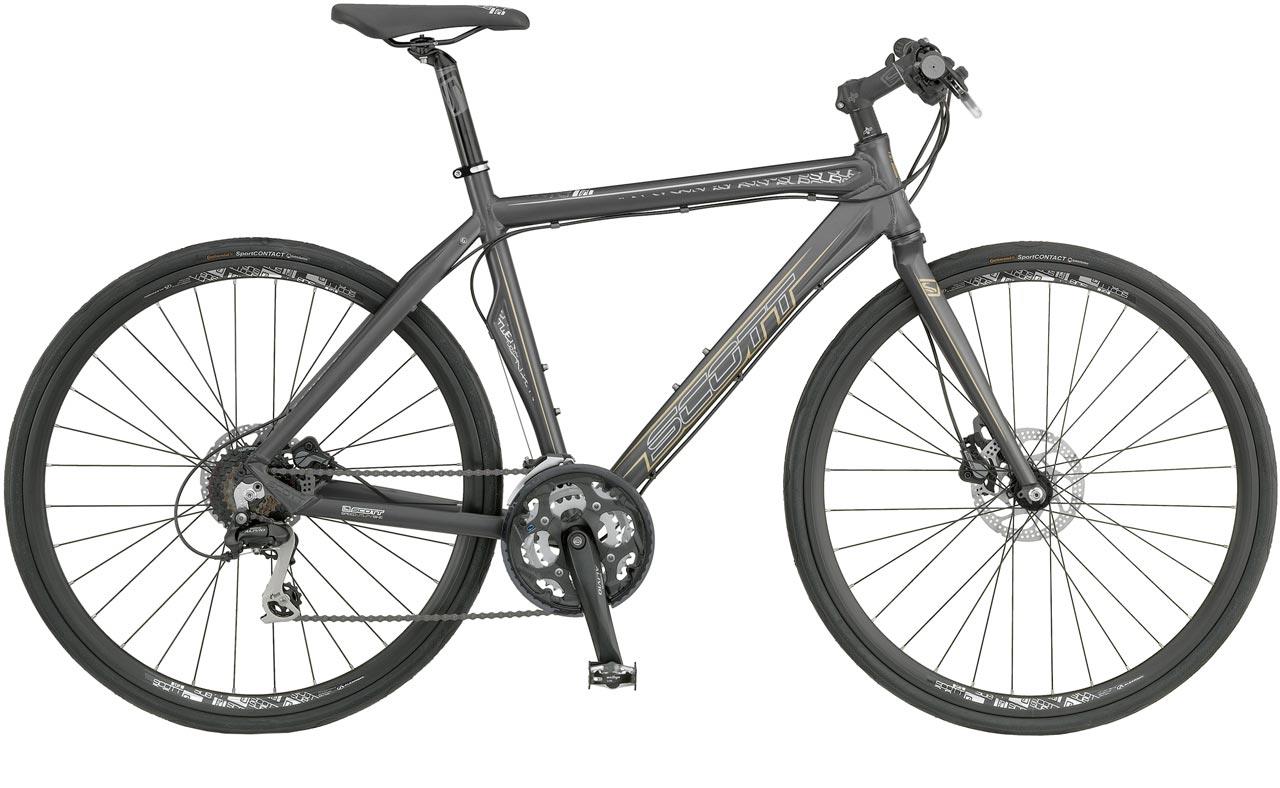

2009 Scott Sub 20 Classic
Road/sport bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- Small, medium, large, xlarge
- Colors
- Anthracite/Gold
- Weight
- 25.55
- Archive ID
- 17353
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Evo/Aero alloy |
| Fork | Scott Sub |
| Fork Material | Alloy, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Road Mix |
|---|---|
| Shifters | Shimano SL-MC40-8 rapidfire |
| Front Derailleur | Shimano FD M310 |
| Rear Derailleur | Shimano Alivio |
| Crankset | Shimano FC-M411, 26/36/48 teeth |
| Bottom Bracket | Shimano BB-UN26, 113mm spindle |
| BB Shell Width | 68mm |
| Cassette | Shimano HG30 |
| Rear Cogs | 8-speed, 11 - 30 teeth |
| Chain | Shimano HG40 |
| Pedals | Wellgo 998S |
Brakes
| Brakes | Shimano M486 w/160mm Rotor brakes, Shimano M486 hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Ritchey OE Logic Zero |
|---|---|
| Handlebar | Scott X-Rod |
| Handlebar Extensions | Not included |
| Stem | NVO TM3 adjustable |
| Saddle | Scott SUB |
| Seatpost | Scott Comp HL-209, 31.6mm diameter |
Wheels & Tires
| Hubs | Front: Scott Comp Disc centerlock, Rear: Shimano RM-65 Centerlock disc |
|---|---|
| Rims | Alex SUB, 32-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 700 x 32c Continental Sport Contact |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
