Velopedia Bicycle Archive

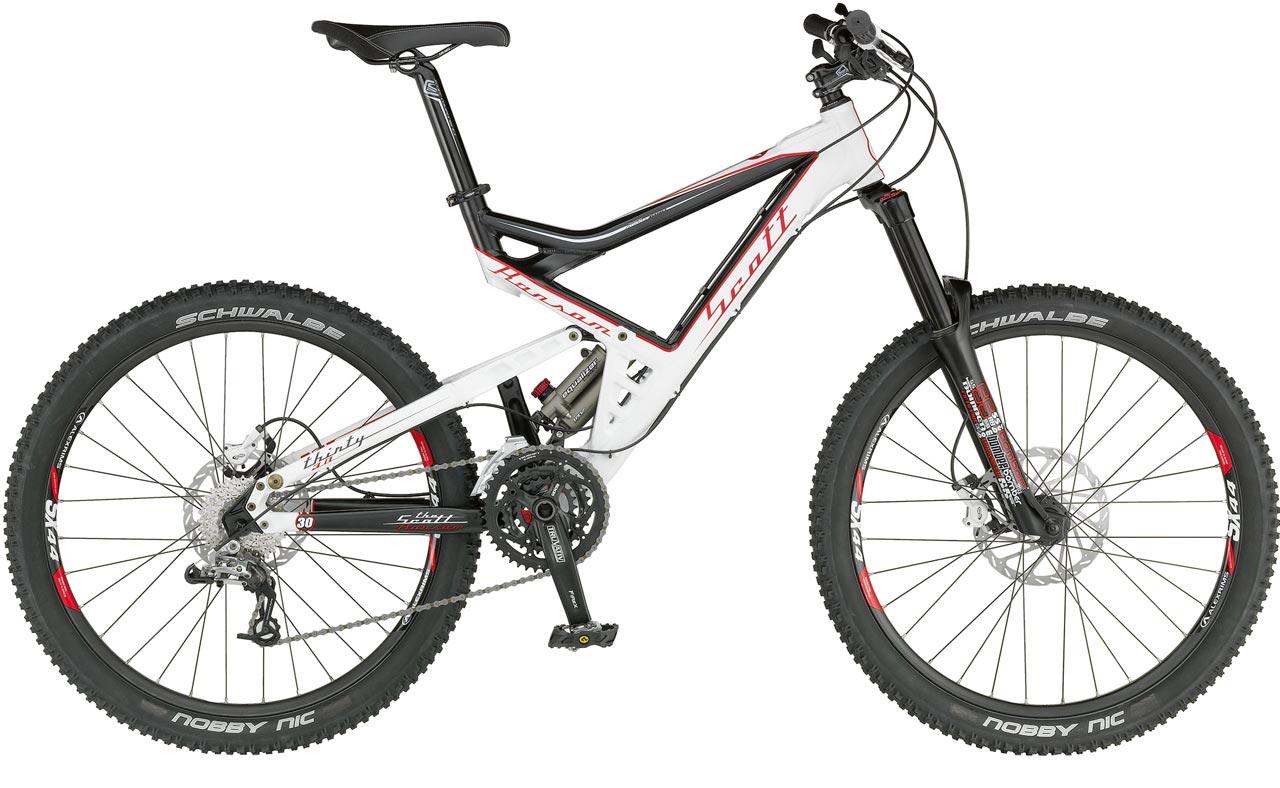

2009 Scott Ransom 30

Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.

Original MSRP
$0.00
Sizes
Small, medium, large, xlarge
Colors
White/Black/Red
Weight
33.479999999999997
Archive ID
17509

Current market

Checking current listings…

Frameset

Frame ConstructionTIG-welded
Frame Material6061 Custom Butted/ Hydraformed Aluminum
ForkMarzocchi 55 R, 160mm travel
Fork MaterialSingle
Rear ShockScott Equalizer TC, 165mm travel

Drivetrain

Component GroupSRAM Mix
ShiftersSRAM X.5 Trigger
Front DerailleurShimano Deore
Rear DerailleurSRAM X.9
CranksetTruVativ Firex 3.1 GXP, 22/32/44 teeth
Bottom BracketTruVativ GXP
BB Shell Width73mm
CassetteShimano HG50
Rear Cogs9-speed, 11 - 32 teeth
ChainShimano HG-53
PedalsShimano PD-M424 SPD

Brakes

BrakesAvid Juicy 3.5 w/203mm rotor front/Avid Juicy 3.5 w/185mm rotor rear brakes, Avid Juicy 3.5 hydraulic levers

Cockpit & Contact Points

Headset1 1/8" FSA No. 9
HandlebarScott Pilot 30 Pro riser
Handlebar ExtensionsNot included
StemScott EC 31.8mm
SaddleScott Ransom w/chromoly rails
SeatpostScott RC 03-60, 34.9mm diameter

Wheels & Tires

HubsFront: Scott EC Pro, 20mm, Rear: Shimano M525 disc
RimsAlex SX-44, 32-hole
SpokesDT Swiss Champion
Front Tire26 x 2.40" Schwalbe Nobby Nic
Wheel Size26" wheels
