Velopedia Bicycle Archive

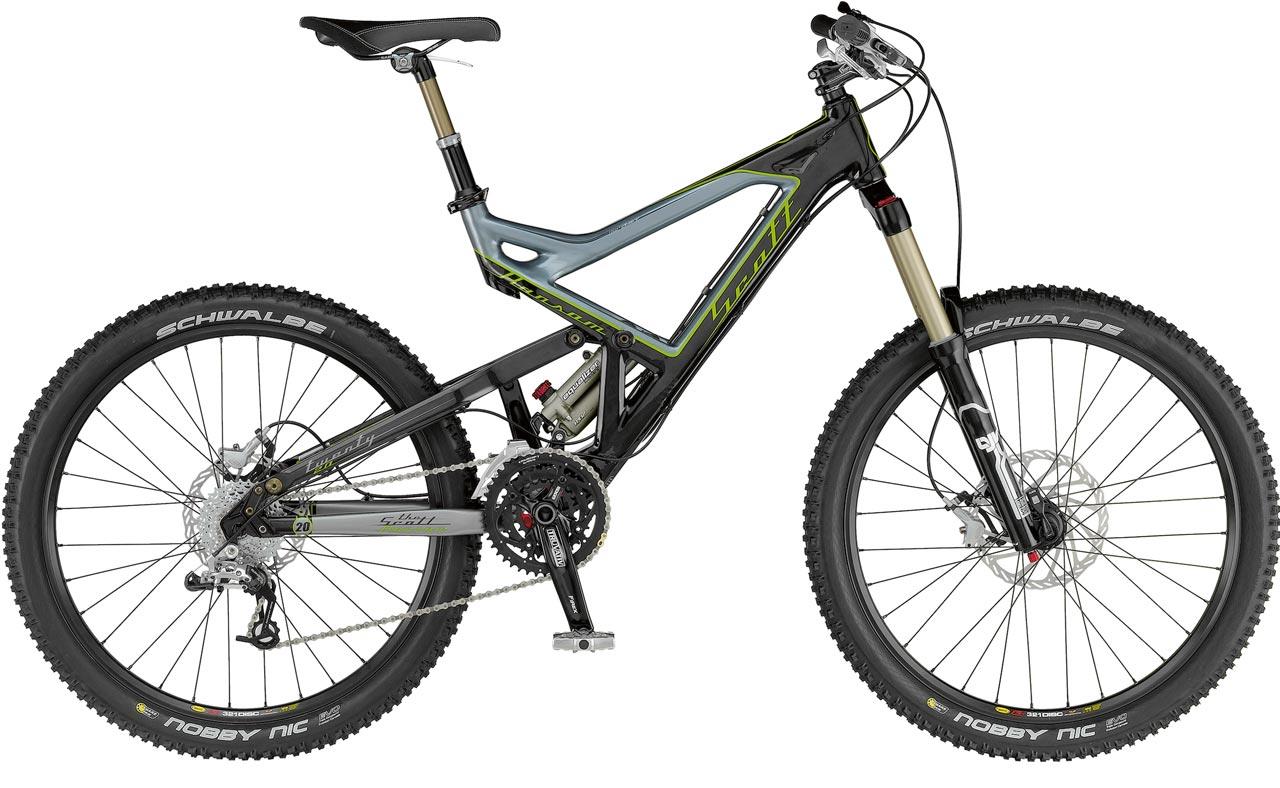

2009 Scott Ransom 20
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- Small, medium, large, xlarge
- Colors
- Carbon/Pewter/Lime
- Weight
- 32.6
- Archive ID
- 17508
Current market
Checking current listings…Frameset
| Frame Construction | Monocoque/ TIG-welded |
|---|---|
| Frame Material | Scott CR-1/HMF Net Carbon w/6061 DB alloy chainstays |
| Fork | RockShox Lyrik DFR U-Turn, 115 - 160mm adjustable travel |
| Fork Material | Magnesium/aluminum, single crown |
| Rear Shock | Scott Equalizer TC, 165mm travel |
Drivetrain
| Component Group | SRAM Mix |
|---|---|
| Shifters | SRAM X.7 Trigger |
| Front Derailleur | Shimano LX |
| Rear Derailleur | SRAM X.9 |
| Crankset | Truvativ Firex 3.3 GXP, 22/32/44 teeth |
| Bottom Bracket | TruVativ GXP |
| BB Shell Width | 73mm |
| Cassette | SRAM PG-980 |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | SRAM PC-971 |
| Pedals | Crank Brothers Acid OEM |
Brakes
| Brakes | Avid Elixir C w/203mm rotor front/Avid Elixir C w/185mm rotor rear brakes, Avid Elixir C levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" FSA No. 9 |
|---|---|
| Handlebar | Scott Pilot 30 Pro riser |
| Handlebar Extensions | Not included |
| Stem | Scott EC 31.8mm |
| Saddle | Scott Ransom w/chromoly rails |
| Seatpost | Crank Brothers Joplin, 34.9mm diameter |
Wheels & Tires
| Hubs | Front: Scott EC Pro, 20mm, Rear: DT Swiss 370 disc |
|---|---|
| Rims | Mavic EN-321, 32-hole |
| Spokes | DT Swiss Champion |
| Spoke Nipples | Alloy |
| Front Tire | 26 x 2.40" Schwalbe Nobby Nic |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
