Velopedia Bicycle Archive

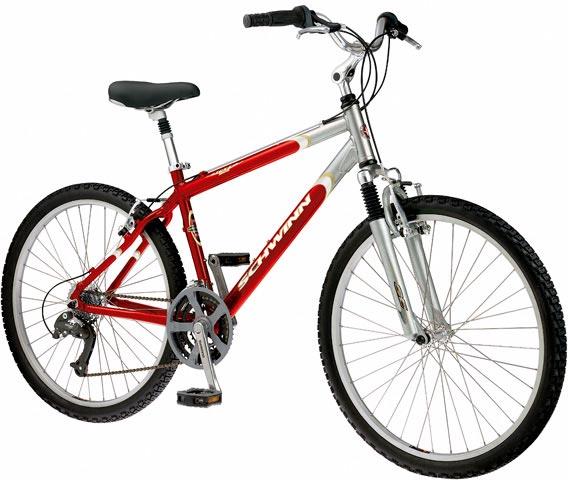

2002 Schwinn Sierra GS
Comfort/commuter bicycle from the Velopedia specification archive.
- Original MSRP
- $359.99
- Sizes
- 15", 17", 19", 21", womens 15", womens 18"
- Colors
- Black/Champagne, Mini-Flake Silver/Mini-Flake Red
- Archive ID
- 38305
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Chromoly seat tube/hi-tensile steel |
| Fork | SE spring/elastomer, 2.5" travel |
| Fork Material | Aluminum, single triple-clamp crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Comfort Mix |
|---|---|
| Shifters | SRAM 4.0 |
| Front Derailleur | Shimano C100 |
| Rear Derailleur | SRAM ESP 4.0 |
| Crankset | Suntour XR-120, 28/38/48 teeth |
| Rear Cogs | 7-speed, 13 - 34 teeth |
| Chain | 1/2 x 3/32" |
| Pedals | Platform, resin |
Brakes
| Brakes | Tektro linear-pull brakes, Tektro aluminum levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" steel |
|---|---|
| Handlebar | Steel, 3" rise |
| Handlebar Extensions | Not included |
| Stem | Aluminum, adjustable |
| Saddle | Super Soft Plus |
| Seatpost | Aluminum micro-adjust |
Wheels & Tires
| Hubs | Formula aluminum, Q/R |
|---|---|
| Rims | Aluminum, 36-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Front Tire | 26 x 1.90" Sierra Comfort Terrain |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
