Velopedia Bicycle Archive

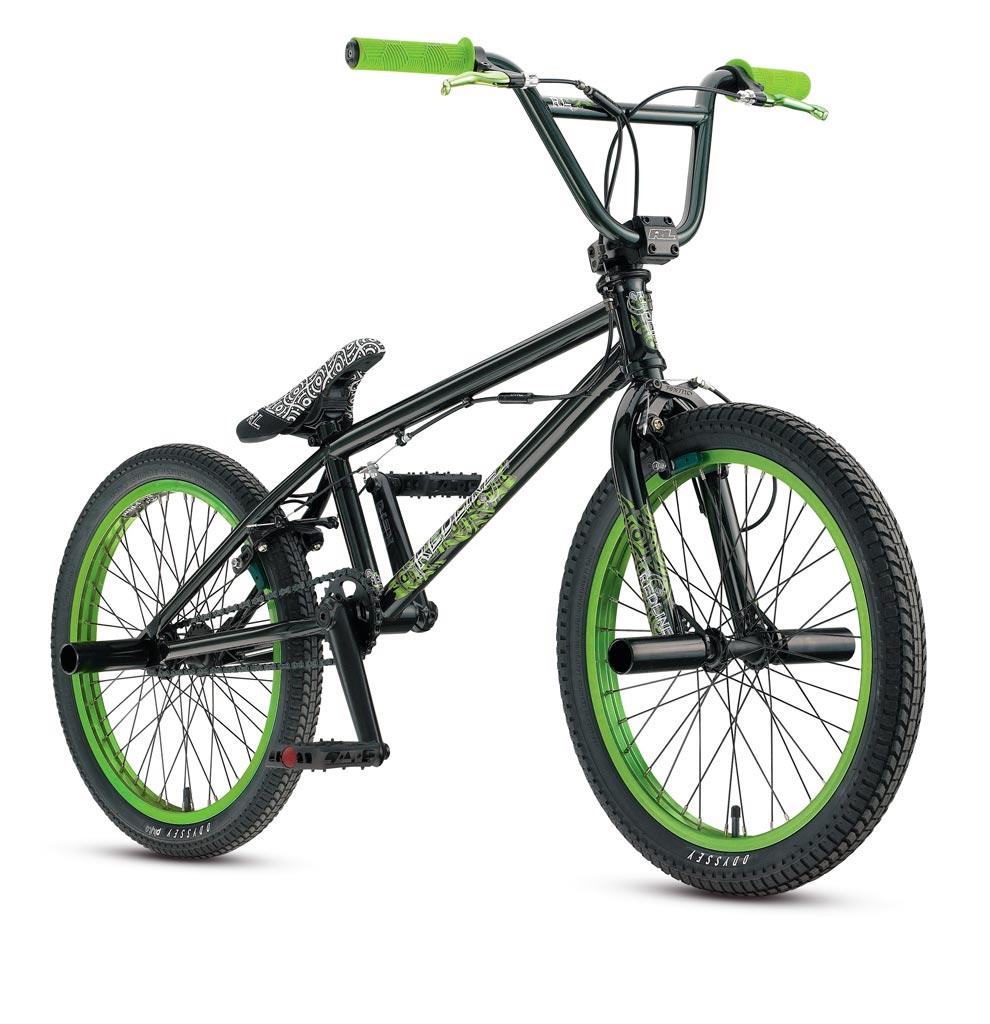

2010 Redline RL 3.2
BMX bicycle from the Velopedia historical specification archive.
- Original MSRP
- $0.00
- Sizes
- One size fits all
- Colors
- Black-Green, White
- Weight
- 30.6
- Archive ID
- 19721
Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | Chromoly |
|---|
| Fork | Redline Monster |
|---|
| Fork Material | Hi-Ten w/ Cr-Mo, unicrown crown |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | BMX Mix |
|---|
| Shifters | N/A |
|---|
| Front Derailleur | N/A |
|---|
| Rear Derailleur | N/A |
|---|
| Crankset | Redline Monster Tubular Chromo, 25 teeth |
|---|
| Bottom Bracket | Redline Monster Chromo Axle |
|---|
| Cassette | Redline Driver |
|---|
| Rear Cogs | 1-speed, 9 teeth |
|---|
| Chain | KMC Z410, 1/2 x 1/8" |
|---|
| Pedals | Odyssey Twisted PC |
|---|
Brakes
| Brakes | Tektro FX340 U-Brake brakes, Tektro 273A Hinged levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless integrated |
|---|
| Handlebar | Redline 8" Hi-Ten |
|---|
| Handlebar Extensions | Not included |
|---|
| Stem | Redline Hollowpoint Aluminum |
|---|
| Saddle | Redline Pivotal |
|---|
| Seatpost | Redline Pivotal, 25.4mm diameter |
|---|
Wheels & Tires
| Hubs | Front: Redline Aluminum 3/8 Axle, Rear: Redline Cassette Aluminum 14mm |
|---|
| Rims | Alienation PBR, 36-hole |
|---|
| Front Tire | Front: 20 x 2.10" Odyssey Path, Rear: 20 x 1.85" Odyssey Path |
|---|
| Wheel Size | 20" wheels |
|---|
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
