Velopedia Bicycle Archive

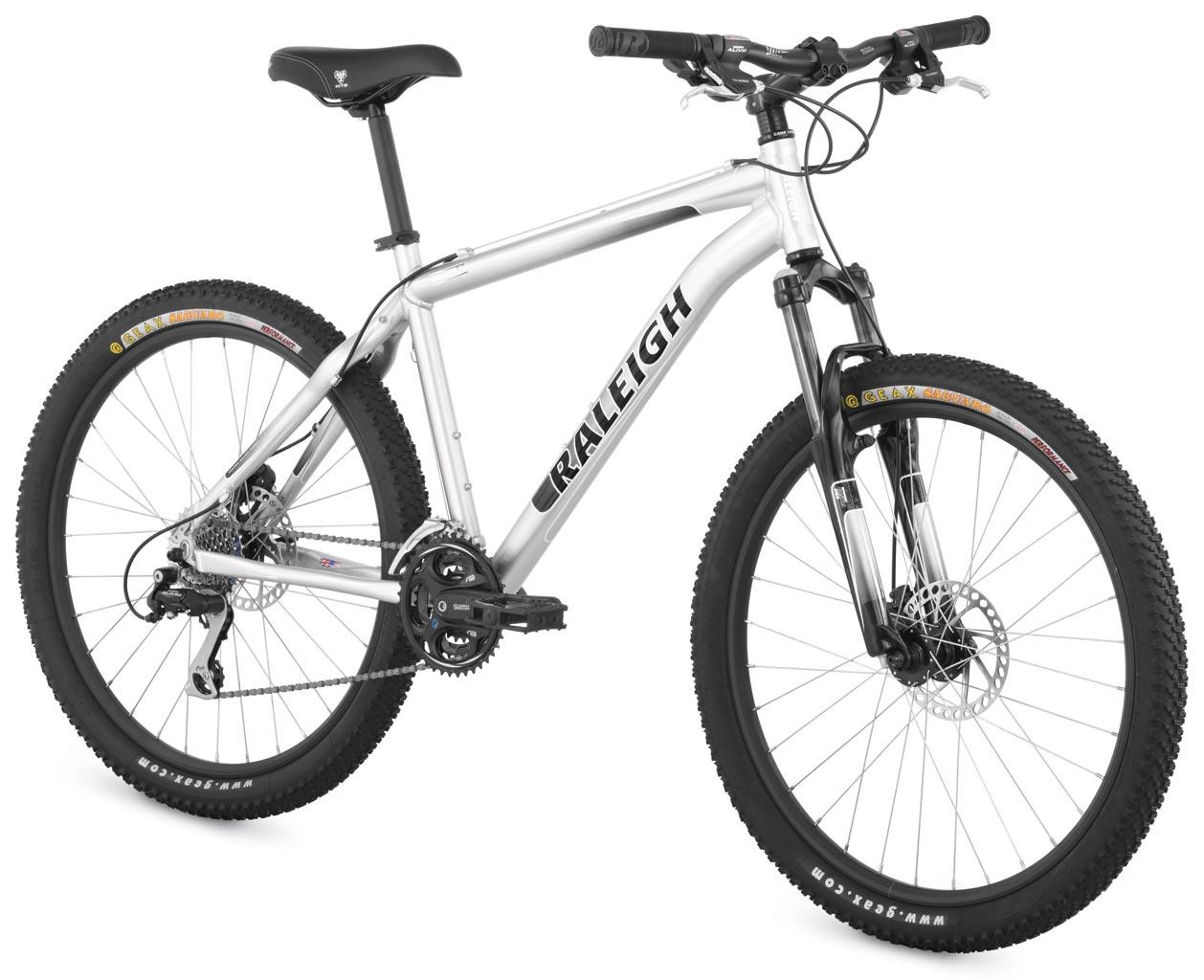

2009 Raleigh Mojave 5.0
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $545.00
- Sizes
- 14", 16", 18", 20", 22"
- Colors
- Riptide Blue, Platinum
- Archive ID
- 18357
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Atomic 13 Aluminum |
| Fork | Spinner Grind OS, 100mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Alivio |
| Front Derailleur | Shimano Acera |
| Rear Derailleur | Shimano Alivio |
| Crankset | Shimano MC311, 22/32/42 teeth |
| Bottom Bracket | Shimano Octalink |
| Cassette | Shimano HG40 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC HG40, 1/2 x 3/32" |
| Pedals | Avenir ATB Resin Platform |
Brakes
| Brakes | Hayes HMX-4 w/160mm rotor brakes, Tektro levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Ahead 1 1/8" |
|---|---|
| Handlebar | Avenir 100 Series Riser |
| Handlebar Extensions | Not included |
| Stem | Avenir 100 31.8mm clamp |
| Saddle | WTB Speed V Sport SE |
| Seatpost | Alloy Micro Adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | JoyTech disc |
|---|---|
| Rims | Weinmann XM-260, 32-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 2.20" Geax Saguaro |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
