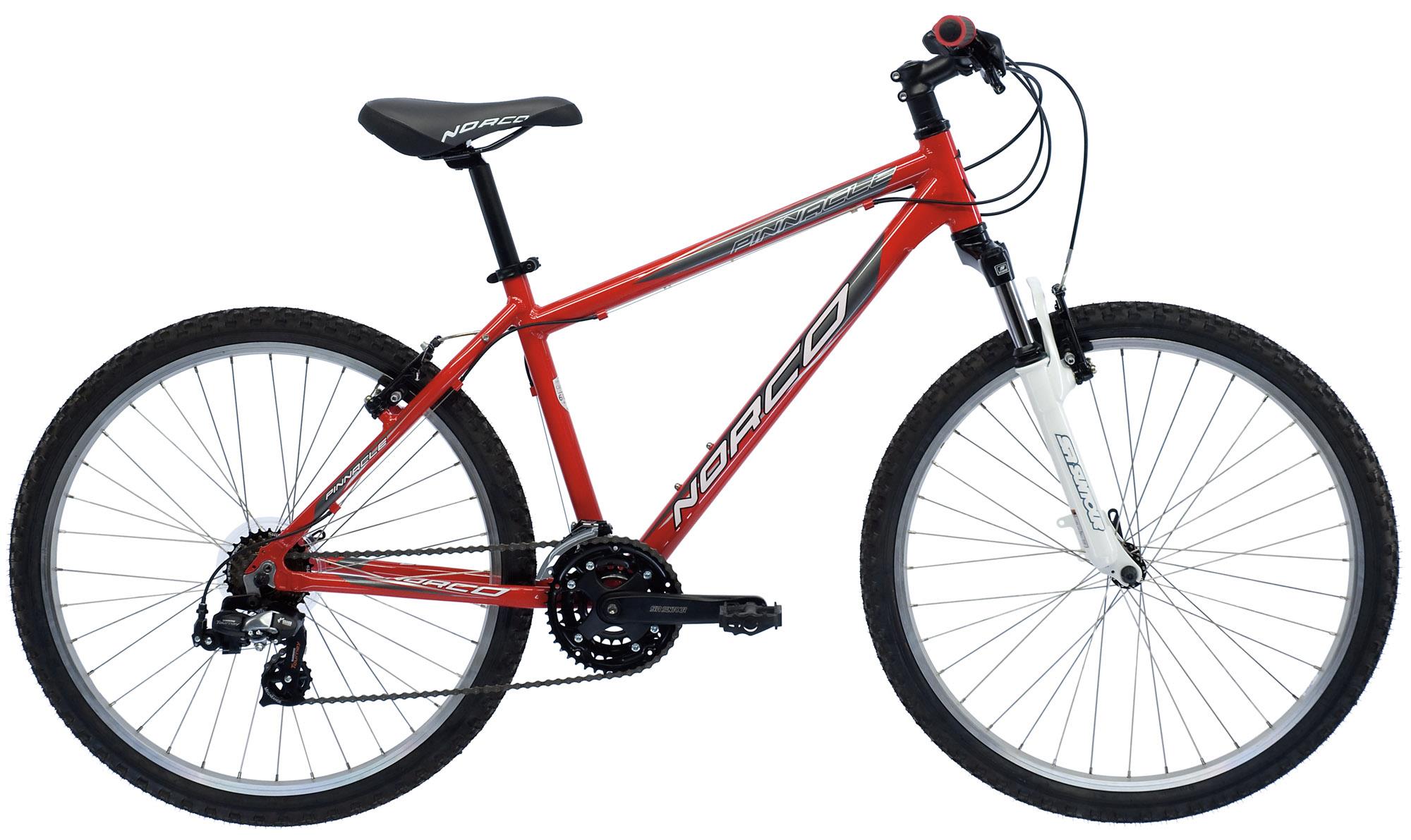

2011 Norco Pinnacle

Mountain bike, front suspension bicycle from the Velopedia specification archive.

Original MSRP
$335.00
Sizes
15", 17", 18.5", 20", 22"
Colors
Black
Archive ID
22872

Current market

Checking current listings…

Frameset

Frame ConstructionTIG-welded
Frame MaterialAlloy
ForkSuntour M-2025, 63mm travel
Fork MaterialSingle
Rear ShockN/A

Drivetrain

Component GroupShimano
ShiftersShimano Altus Easy Fire 50
Front DerailleurShimano Tourney FD-TX50
Rear DerailleurShimano tourney RD-TX51
CranksetSR Suntour, 24/34/42 teeth
Bottom BracketCartridge
CassetteShimano
Rear Cogs7-speed, 14 - 28 teeth
ChainKMC Z50
PedalsBlack resin

Brakes

BrakesTektro V brakes, Shimano Altus Easy Fire 50 levers

Cockpit & Contact Points

HeadsetThreadless semi-cartridge bearing
HandlebarSteel
Handlebar ExtensionsNot included
StemAlloy
SaddleNorco Adventure
SeatpostAlloy

Wheels & Tires

HubsKun Teng alloy
RimsAlloy, 36-hole
SpokesStainless
Front Tire26 x 1.95" Kenda K831
Wheel Size26" wheels
