Velopedia Bicycle Archive

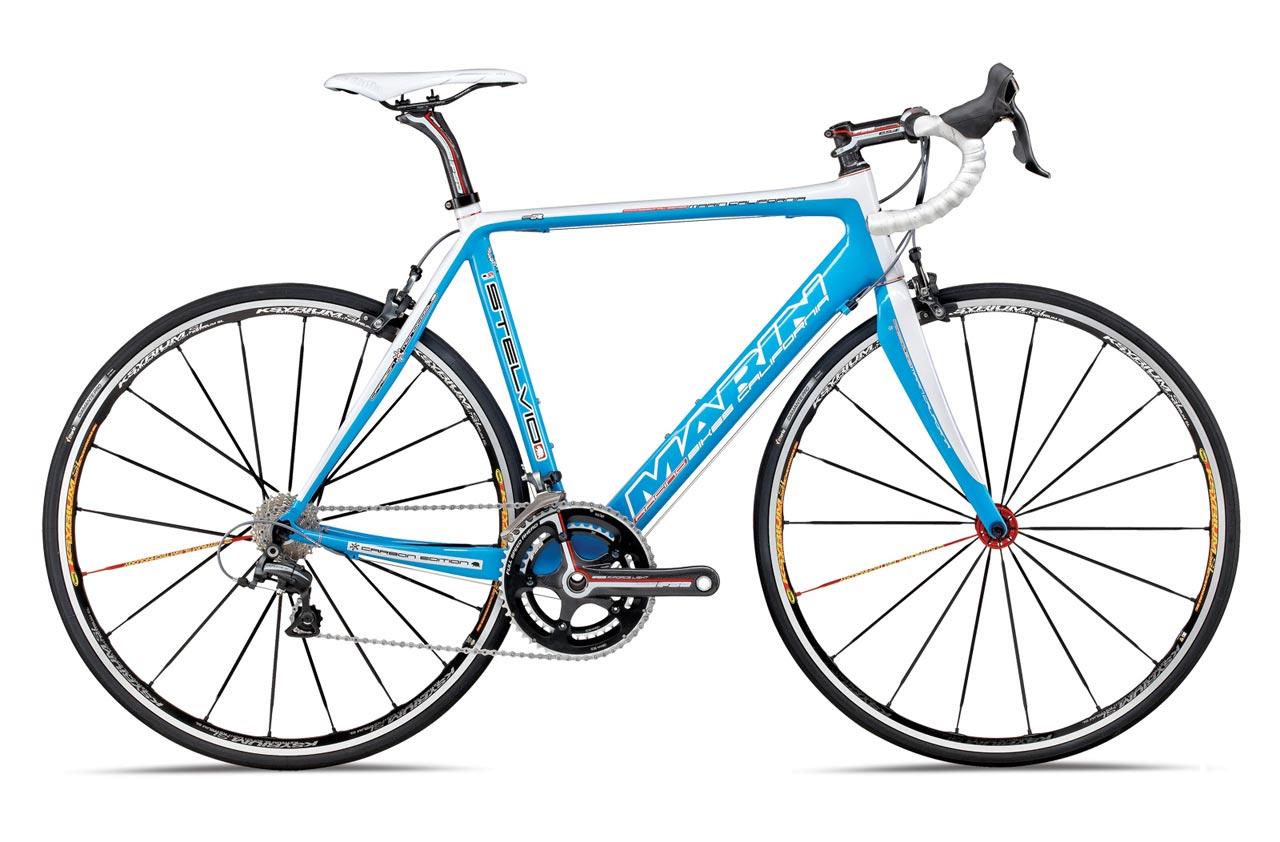

2010 Marin Stelvio Dura-Ace
Road race & triathlon bicycle from the Velopedia specification archive.
- Original MSRP
- $5,250.00
- Sizes
- 50XS, 53S, 55M, 58L, 61XL
- Colors
- Blue/White
- Archive ID
- 20688
Frameset
| Frame Construction | Monocoque |
|---|---|
| Frame Material | CXR 7 carbon monocoque |
| Fork | CXR Carbon monocoque |
| Fork Material | Carbon/carbon steerer |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano Dura-Ace mix |
|---|---|
| Shifters | Shimano Dura-Ace STI |
| Front Derailleur | Shimano Dura-Ace, clamp on |
| Rear Derailleur | Shimano Dura-Ace |
| Crankset | FSA K-Force Lite Carbon, 38/52 teeth |
| Bottom Bracket | FSA Mega EXO |
| Cassette | Shimano Ultegra |
| Rear Cogs | 10-speed, 12 - 25 teeth |
| Chain | Shimano Dura-Ace |
| Pedals | N/A |
Brakes
| Brakes | Shimano Dura-Ace Dual Pivot brakes, Shimano Dura-Ace STI levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated Orbit IS Carbon |
|---|---|
| Handlebar | FSA K-Wing Compact Aero Anatomic |
| Handlebar Extensions | Not included |
| Stem | FSA OS99 |
| Saddle | Selle Italia SLR |
| Seatpost | FSA SLK Carbon, 350mm, 31.6mm diameter |
Wheels & Tires
| Hubs | Mavic Ksyrium SL |
|---|---|
| Rims | Mavic Ksyrium SL, 18-hole/20-hole |
| Spokes | Mavic |
| Front Tire | 700 x 23c Vittoria Diamonte Pro |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
