Velopedia Bicycle Archive

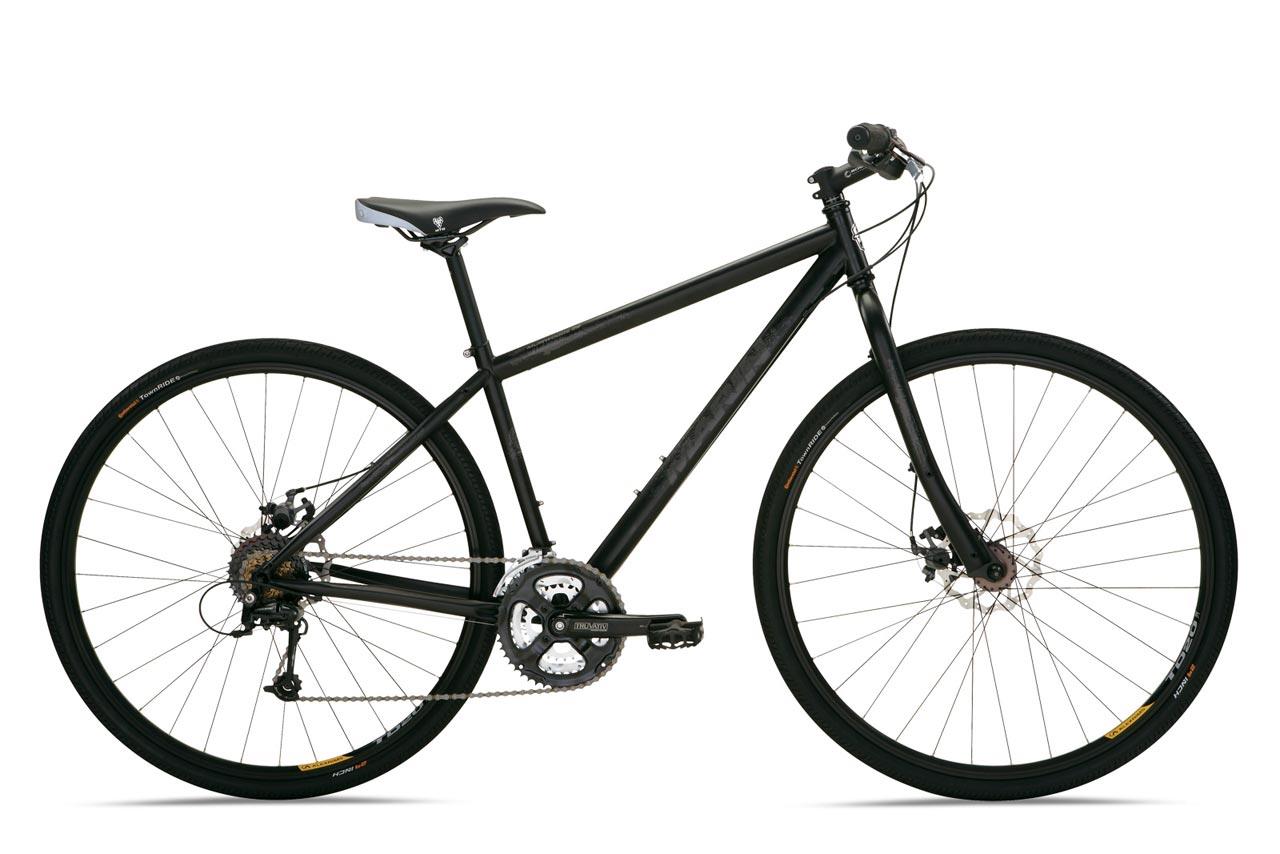

2010 Marin Muir Woods 29er
City/commuter bicycle from the Velopedia historical specification archive.
- Original MSRP
- $645.00
- Sizes
- 17", 19", 20.5", 22"
- Colors
- Black Midnight
- Archive ID
- 20710
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Double Butted Cromoly |
| Fork | Rigid 29er |
| Fork Material | Chromoly, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Commuter Mix |
|---|---|
| Shifters | Shimano Alivio |
| Front Derailleur | Shimano |
| Rear Derailleur | Shimano Deore |
| Crankset | TruVativ X-Flow C 3.0, 28/38/48 teeth |
| Bottom Bracket | Truvativ sealed cartridge |
| Cassette | Shimano HG30 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | HG40 |
| Pedals | Composite with Alloy Cage |
Brakes
| Brakes | Hayes MX4 Mechanical w/ 6" Rotor brakes, forged alloy 3 finger levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated TH-888 |
|---|---|
| Handlebar | Double Butted 6061 Alloy riser |
| Handlebar Extensions | Not included |
| Stem | Marin Alloy OS |
| Saddle | WTB Vigo Sport |
| Seatpost | Alloy Micro Adjust, 300mm, 27.2mm diameter |
Wheels & Tires
| Hubs | Alloy Double Sealed QR |
|---|---|
| Rims | Alex TD-20, 32-hole |
| Spokes | WTB stainless, 15ga. (1.8mm) |
| Front Tire | 29 x 1.60" Continental Town Ride |
| Wheel Size | 29" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
