Velopedia Bicycle Archive

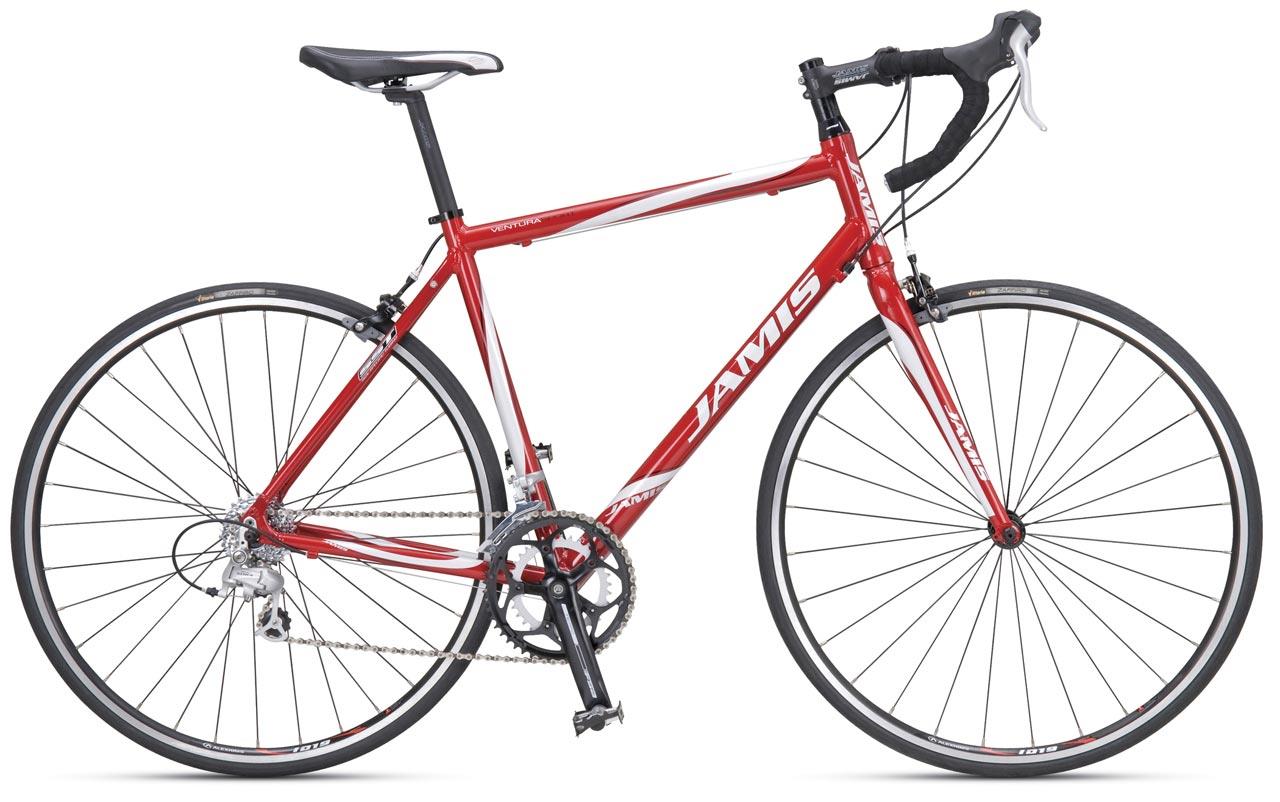

2010 Jamis Ventura Sport
Road/sport bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 48cm, 51cm, 54cm, 56cm, 58cm, 61cm
- Colors
- Sunset Red
- Archive ID
- 19590
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kinesis 7005 Aluminum |
| Fork | Jamis |
| Fork Material | Alloy/chromoly steerer, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Road Mix |
|---|---|
| Shifters | Shimano ST-2300 Dual Control STI |
| Front Derailleur | Shimano FD-2300, 31.8mm clamp |
| Rear Derailleur | Shimano Sora RD-3400 |
| Crankset | FSA Tempo Compact, 50/34 teeth |
| Bottom Bracket | Sealed cartridge, 110.5mm spindle |
| BB Shell Width | 68mm |
| Cassette | SRAM PowerGlide 850 |
| Rear Cogs | 8-speed, 12 - 26 teeth |
| Chain | KMC Z8 |
| Pedals | Touring Platform w/ Toe Clips |
Brakes
| Brakes | Tektro dual pivot brakes, Shimano ST-2300 STI levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA Integrated |
|---|---|
| Handlebar | Jamis Road 31.8mm clamp |
| Handlebar Extensions | Not included |
| Stem | Jamis Road 3D Forged Alloy |
| Saddle | Jamis Road Sport |
| Seatpost | Jamis alloy micro-adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Formula Alloy QR |
|---|---|
| Rims | Alex ID-19, 28-hole/32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) |
| Front Tire | 700 x 23c Vittoria Zaffiro |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
