Velopedia Bicycle Archive

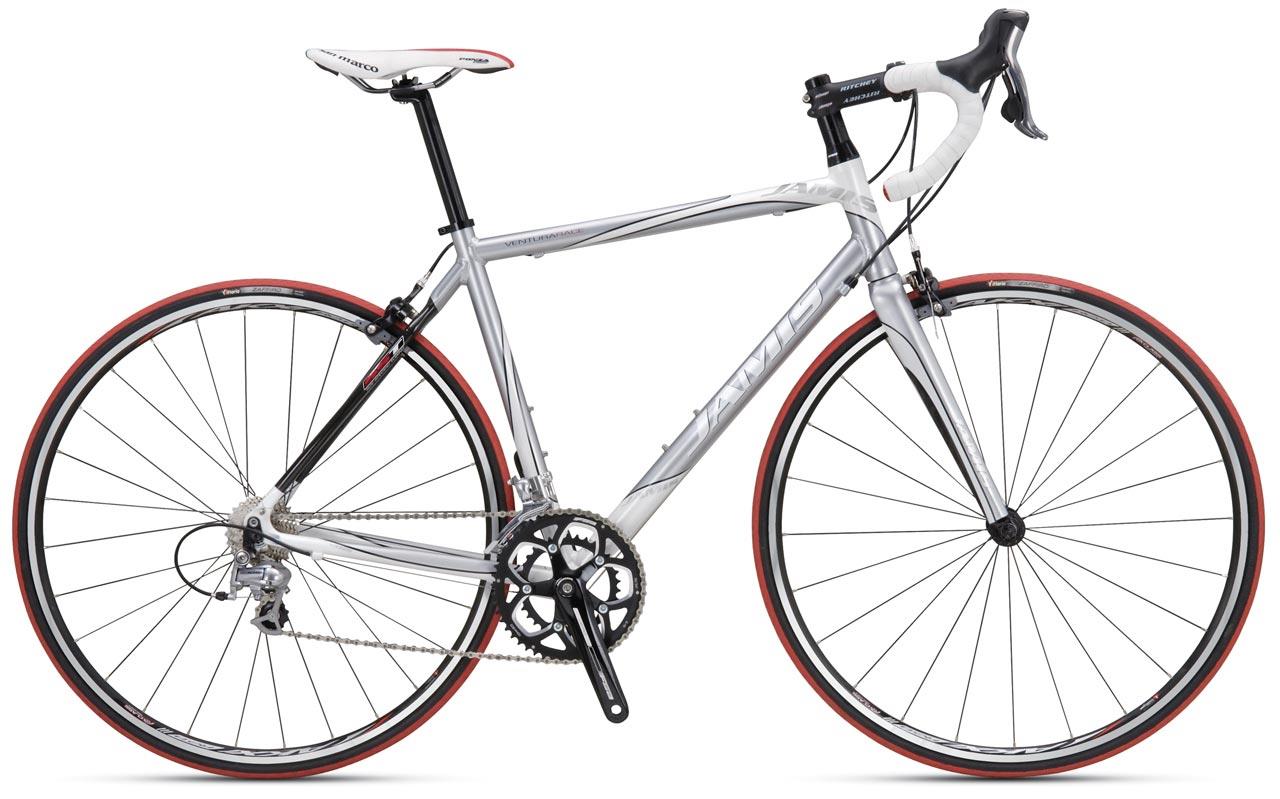

2010 Jamis Ventura Race
Road/sport bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 48cm, 51cm, 54cm, 56cm, 58cm, 61cm
- Colors
- Stainless/Pearl White
- Archive ID
- 19585
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kinesis 7005 Double-Butted Aluminum Main Frame with Carbon Fiber Monostay |
| Fork | Jamis |
| Fork Material | Carbon Composite, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Road Mix |
|---|---|
| Shifters | Shimano 105 ST-5600 Dual Control STI |
| Front Derailleur | Shimano 105 FD-5600, 31.8mm clamp |
| Rear Derailleur | Shimano 105 RD-5600 |
| Crankset | FSA Vero Compact, 50/34 teeth |
| Bottom Bracket | FSA Powerdrive, 108mm spindle |
| BB Shell Width | 68mm |
| Cassette | Shimano CS-5600 |
| Rear Cogs | 10-speed, 11 - 25 teeth |
| Chain | KMC DX10SC |
| Pedals | N/A |
Brakes
| Brakes | Tektro dual pivot brakes, Shimano 105 ST-5600 STI levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA Integrated |
|---|---|
| Handlebar | Ritchey Comp Logic II |
| Handlebar Extensions | Not included |
| Stem | Ritchey Comp 3D Forged |
| Saddle | Selle San Marco Ponza Power |
| Seatpost | Jamis Carbon Fiber Micro adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Alex AKX 2.0 |
|---|---|
| Rims | Alex AKX 2.0, 24-hole/28-hole |
| Spokes | DT Swiss stainless steel |
| Front Tire | 700 x 23c Vittoria Zaffiro |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
