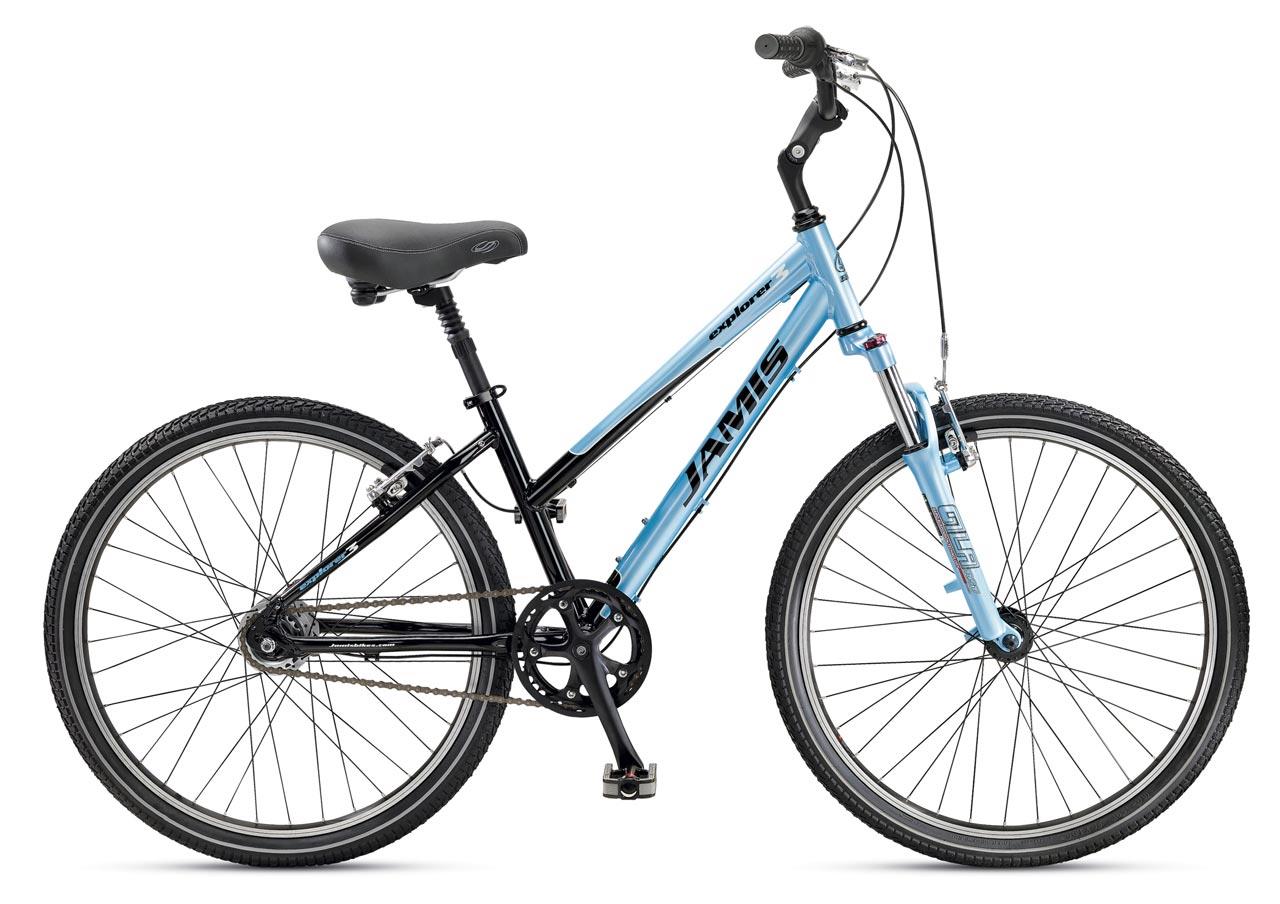

2010 Jamis Explorer 3 Femme
Comfort/commuter bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- Womens 14", womens 17"
- Colors
- Ocean Mist/Gloss Black, Pearl White/Gloss Black
- Archive ID
- 19629
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 aluminum |
| Fork | RST Gila ML, 80mm travel |
| Fork Material | Single crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Comfort Mix |
|---|---|
| Shifters | Shimano SL-8S20 Revo |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | Forged Alloy w/chainguard, 42 teeth |
| Bottom Bracket | Sealed cartridge, 124.5mm spindle |
| BB Shell Width | 68mm |
| Cassette | Shimano Nexus |
| Rear Cogs | 8-speed internal, 20 teeth |
| Chain | KMC Z610 |
| Pedals | Comfort Platform |
Brakes
| Brakes | Tektro forged alloy direct pull brakes, Tektro Tenera levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threaded ATB sealed |
|---|---|
| Handlebar | Hi-Rise Comfort |
| Handlebar Extensions | Not included |
| Stem | Jamis Alloy Quill Type |
| Saddle | Jamis Comfort |
| Seatpost | Suspension Alloy Micro-Adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Formula Alloy QR, Rear: Shimano Nexus Inter-8 |
|---|---|
| Rims | Alex DC-25, 36-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) |
| Front Tire | 26 x 1.95" Jamis Sport Comfort |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
