Velopedia Bicycle Archive

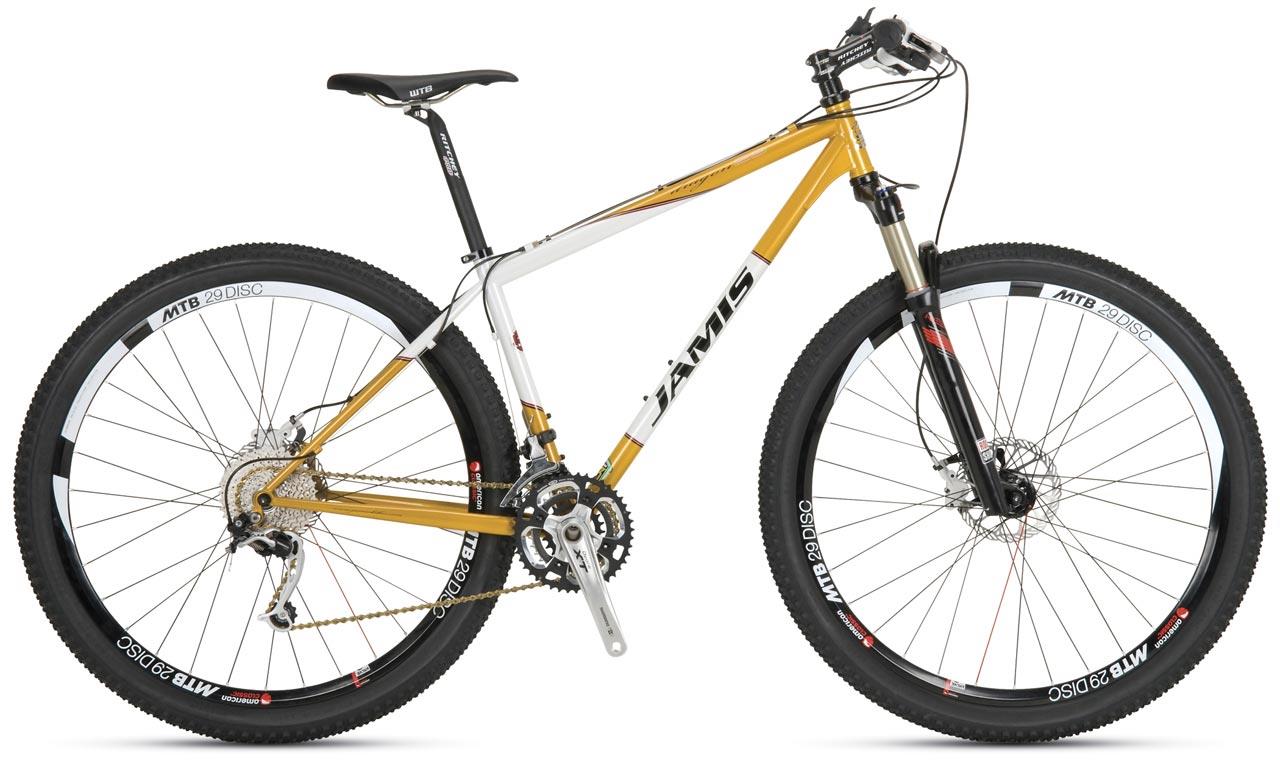

2010 Jamis Dragon 29'er
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- 15", 17", 19", 21"
- Colors
- Amber/Pearl White
- Archive ID
- 19659
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Reynolds 853 Air-Hardened/Heat Treated Chromoly |
| Fork | Rock Shox Reba 29er Race Dual Air, 100mm travel |
| Fork Material | Magnesium/aluminum, single crown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore XT Rapid Fire Plus-SL |
| Front Derailleur | Shimano Deore XT, top-pull/clamp-on 28.6mm |
| Rear Derailleur | Shimano Deore XT Shadow |
| Crankset | Shimano Deore XT M770 Hollowtech II, 44/32/22 teeth |
| Bottom Bracket | Shimano Deore XT Integrated |
| Cassette | Shimano Deore HG61 |
| Rear Cogs | 9-speed, 12 - 36 teeth |
| Chain | KMC Tt-Ni9 Gold |
| Pedals | N/A |
Brakes
| Brakes | Avid Elixer 5 w/160mm rotor brakes, Avid Elixer 5 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Ritchey Comp Logic V2 |
|---|---|
| Handlebar | Ritchey Mountain Pro Flat Bar |
| Handlebar Extensions | Not included |
| Stem | Ritchey Pro OS 4-Axis |
| Saddle | WTB Silverado |
| Seatpost | Ritchey Pro 2-bolt, 27.2mm diameter |
Wheels & Tires
| Hubs | American Classic MTB 29 Disc |
|---|---|
| Rims | American Classic 29er |
| Spokes | American Classic |
| Front Tire | 29 x 2.20" Geax Saguaro |
| Wheel Size | 29" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
