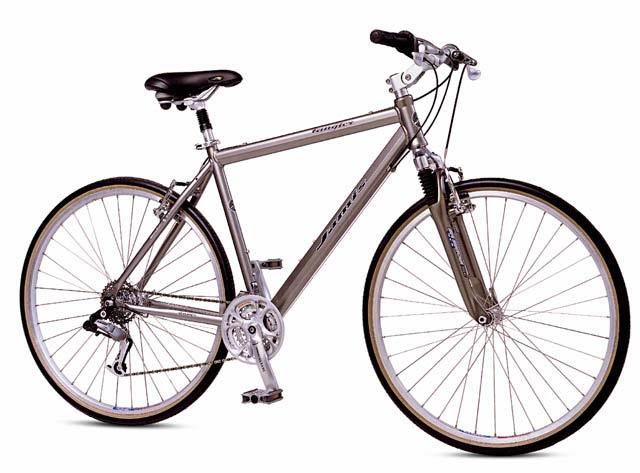

2002 Jamis Tangier
Hybrid bicycle from the Velopedia specification archive.
- Original MSRP
- $589.95
- Sizes
- 14.5", 16.5", 18.5", 20.5", 22"
- Colors
- Pewter
- Weight
- 27.75
- Archive ID
- 36915
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 T6 butted aluminum w/replaceable derailleur hanger |
| Fork | SR NCX-D, 2.5" travel |
| Fork Material | Aluminum, triple-clamp crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Hybrid Mix |
|---|---|
| Shifters | SRAM 7.0 |
| Front Derailleur | Shimano Alivio top-swing, bottom-pull/clamp-on 31.8mm |
| Rear Derailleur | SRAM ESP 7.0 |
| Crankset | Shimano Nexave, 22/32/44 teeth |
| Bottom Bracket | Shimano BB-LP28, 110mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | Shimano CN-IG51, 1/2 x 3/32" |
| Pedals | VP comfort |
Brakes
| Brakes | Tektro forged linear-pull brakes, SRAM Two-Axis levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless VP |
|---|---|
| Handlebar | Aluminum, rise |
| Handlebar Extensions | Not included |
| Stem | Aluminum, adjustable |
| Saddle | Selle Royale Look-In |
| Seatpost | Suspension, micro-adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Ritchey Comp QR, Rear: Ritchey Comp-Z QR |
|---|---|
| Rims | Front: Ritchey Rock Comp, Rear: Ritchy Rock Comp OCR, 36-hole |
| Spokes | Ritchey stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 700 x 38c Cheng Shin 1069 |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
