Velopedia Bicycle Archive

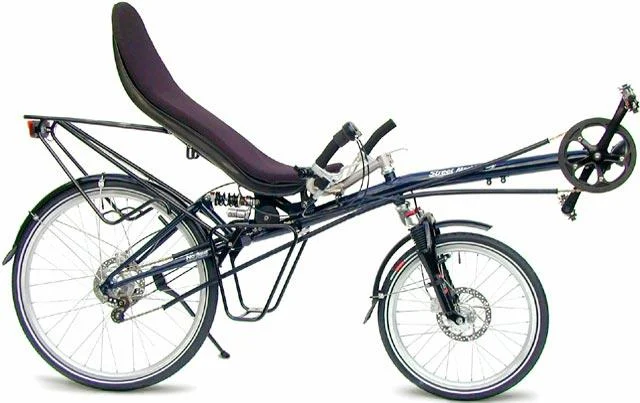

2003 HP Velotechnik Street Machine Gt
Recumbent bicycle from the Velopedia specification archive.
- Original MSRP
- $1,750.00
- Sizes
- One size fits for all
- Colors
- Custom Color, Dark Blue, Orange
- Weight
- 37
- Archive ID
- 91938
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 4130 chromoly |
| Fork | MEKS Carbon AII, 1.7" travel |
| Fork Material | Carbon fiber w/chromoly steerer |
| Rear Shock | DNM DV-22, 3.4" travel |
Drivetrain
| Component Group | Recumbent Mix |
|---|---|
| Shifters | Shimano Dura-Ace bar-end |
| Front Derailleur | Shimano Tiagra Triple, top-pull/clamp-on 28.6mm |
| Rear Derailleur | Shimano Deore SGS |
| Crankset | Dotek Pro aluminum, 30/42/52 teeth |
| Bottom Bracket | Kinex sealed cartridge, 122.5mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | SRAM PC-59, 1/2 x 3/32" |
| Pedals | Wellgo LU-981A |
Brakes
| Brakes | Tektro 845A linear pull brakes, Tektro 385A levers |
|---|
Cockpit & Contact Points
| Headset | 1" threadless NECO Ahead |
|---|---|
| Handlebar | HP Ergobar |
| Handlebar Extensions | N/A |
| Stem | HP Velotechnik |
| Saddle | HP Velotechnik |
| Seatpost | N/A |
Wheels & Tires
| Hubs | Quando aluminum disc Q/R |
|---|---|
| Rims | Schürmann Double Master, 32-hole |
| Spokes | DT stainless steel, 15ga. (1.8mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | Front: 20 x 1.50" Schwalbe Marathon, Rear: 26 x 1.50" Schwalbe Marathon |
| Wheel Size | Front: 20", Rear: 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
