Velopedia Bicycle Archive

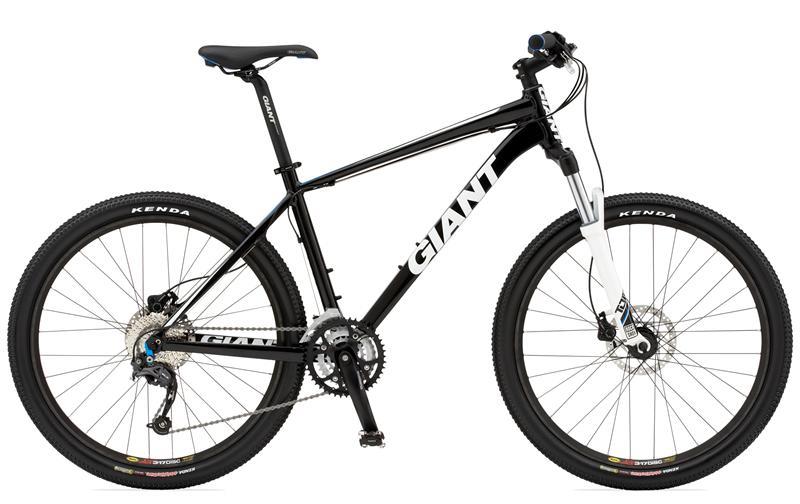

2010 Giant XTC 1
Mountain bike, front suspension bicycle from the Velopedia historical specification archive.
- Original MSRP
- $1,000.00
- Sizes
- XS, S, M, L, XL
- Colors
- Black/Blue
- Archive ID
- 19539
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | ALUXX SL aluminum |
| Fork | Rock Shox Tora XC, 100mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore |
| Front Derailleur | Shimano Deore, clamp on |
| Rear Derailleur | Shimano SLX Shadow top normal |
| Crankset | Shimano Alivio, 22/32/44 teeth |
| Bottom Bracket | Shimano BB-UN26 |
| Cassette | Shimano HG-50 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Shimano HG-73 |
| Pedals | Shimano 505 |
Brakes
| Brakes | Shimano Alivio 160mm brakes, Shimano Alivio levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" |
|---|---|
| Handlebar | Giant Connect riser 31.8 |
| Handlebar Extensions | Not included |
| Stem | Giant Connect |
| Saddle | Giant performance mtb |
| Seatpost | Giant Connect, 30.9mm diameter |
Wheels & Tires
| Hubs | Formula |
|---|---|
| Rims | Mavic XM 317, 32-hole |
| Spokes | Stainless, 14ga. (2.0mm) straight gauge |
| Front Tire | Front: 26 x 2.1" Kenda Small Block Eight, Rear: 26 x 1.95" Kenda Small Block Eight |
| Wheel Size | 26" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
