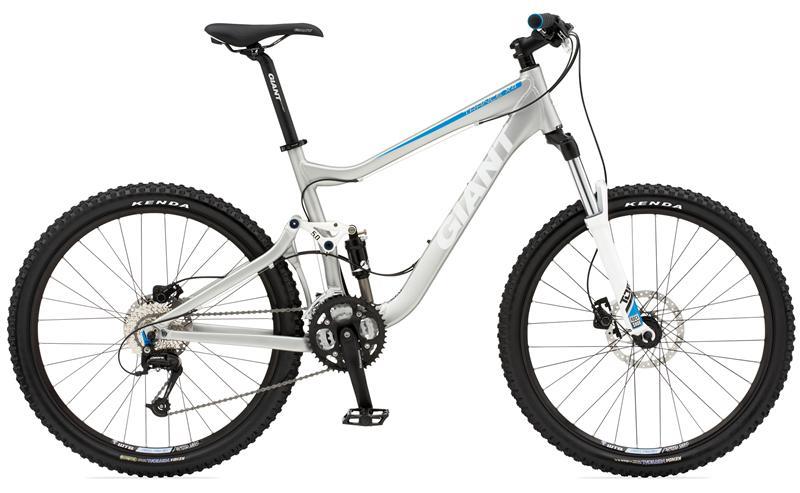

2010 Giant Trance X4
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $1,300.00
- Sizes
- Xsmall, small, medium, large, xlarge
- Colors
- Satin/Silver Blue
- Archive ID
- 19390
Frameset
| Frame Material | ALUXX SL aluminum |
|---|---|
| Fork | RockShox Tora 302, 120mm travel |
| Rear Shock | Giant Air, 5" travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore |
| Front Derailleur | Shimano Deore, clamp-on |
| Rear Derailleur | Shimano Deore Top Normal |
| Crankset | Shimano Alivio, 22/32/44 teeth |
| Bottom Bracket | Shimano BBES25 |
| Cassette | Shimano Deore |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Shimano HG-73 |
| Pedals | Platform Alloy |
Brakes
| Brakes | Shimano Alivio brakes, Shimano Alivio levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated cartridge |
|---|---|
| Handlebar | Giant Connect low-rise 31.8 |
| Handlebar Extensions | Not included |
| Stem | Giant Connect |
| Saddle | Giant performance mtb |
| Seatpost | Giant Connect 375mm, 30.9mm diameter |
Wheels & Tires
| Hubs | Formula alloy disc |
|---|---|
| Rims | WTB Speed Disc, 32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Front Tire | 26 x 2.10" Kenda Nevagal |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
