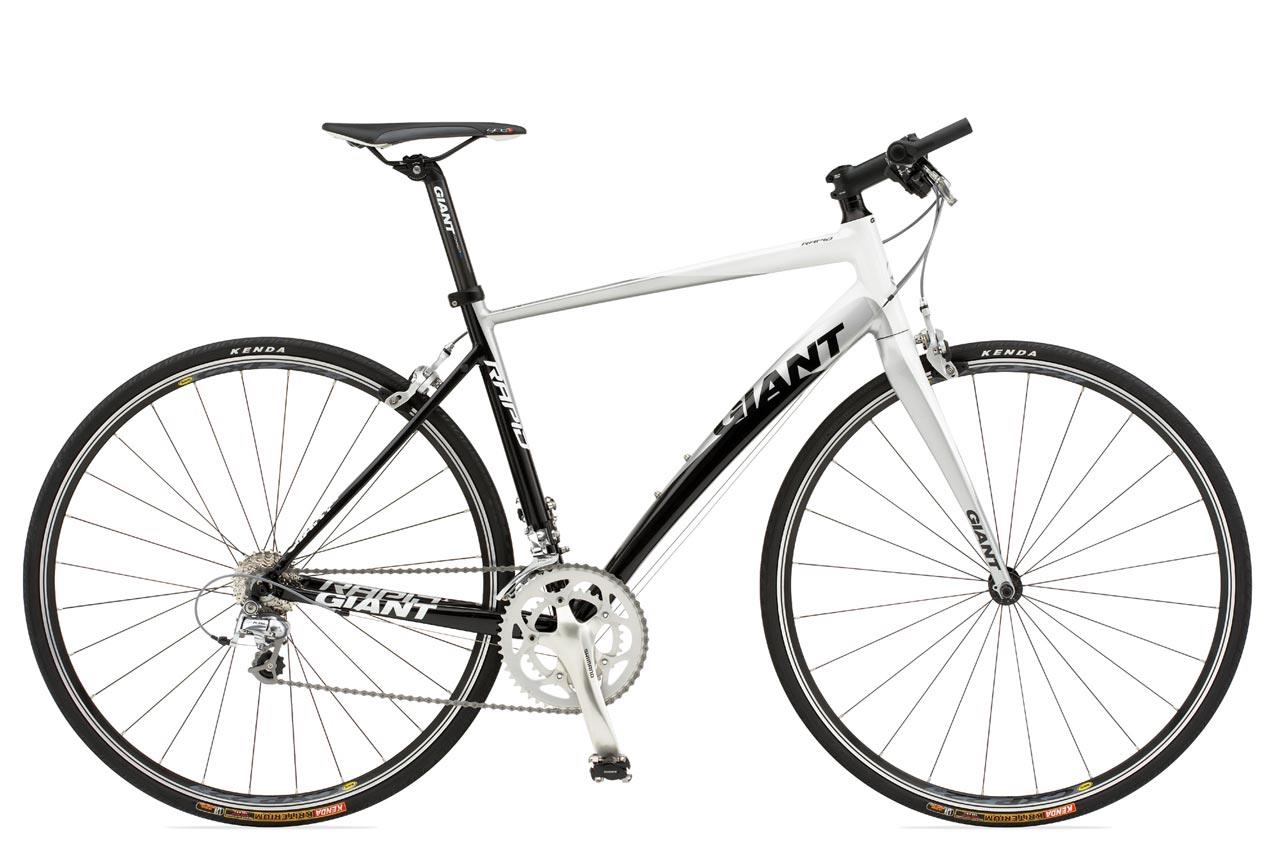

2010 Giant Rapid 1
Road/sport bicycle from the Velopedia specification archive.
- Original MSRP
- $1,000.00
- Sizes
- XS, S, M, L, XL
- Colors
- White/Silver/Black
- Archive ID
- 19428
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | ALUXX aluminum |
| Fork | Giant Advanced composite |
| Fork Material | Carbon fiber/aluminum steerer |
| Rear Shock | N/A |
Drivetrain
| Shifters | Shimano R440 |
|---|---|
| Front Derailleur | Shimano R440, clamp-on |
| Rear Derailleur | Shimano 105 |
| Crankset | Shimano R600, 34/50 teeth |
| Bottom Bracket | Shimano External |
| Cassette | Shimano HG-50 |
| Rear Cogs | 9-speed, 12 - 25 teeth |
| Chain | Shimano HG-73 |
| Pedals | Shimano 505 |
Brakes
| Brakes | Shimano Dual Pivot, Long Reach brakes, Tektro alloy levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8"- 1 1/4" Tapered Threadless |
|---|---|
| Handlebar | Giant Connnect flat 31.8 |
| Handlebar Extensions | Aluminum bar-ends |
| Stem | Giant Connect SL |
| Saddle | Selle Royal Seta M |
| Seatpost | Giant Connect SL, 30.9mm diameter |
Wheels & Tires
| Hubs | Formula sealed |
|---|---|
| Rims | Mavic CXP 22, 24-hole/28-hole |
| Spokes | Sapim Race stainless steel, 14/15ga. (2.0/1.8mm) butted |
| Front Tire | 700 x 25c Kenda Kriterium |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
