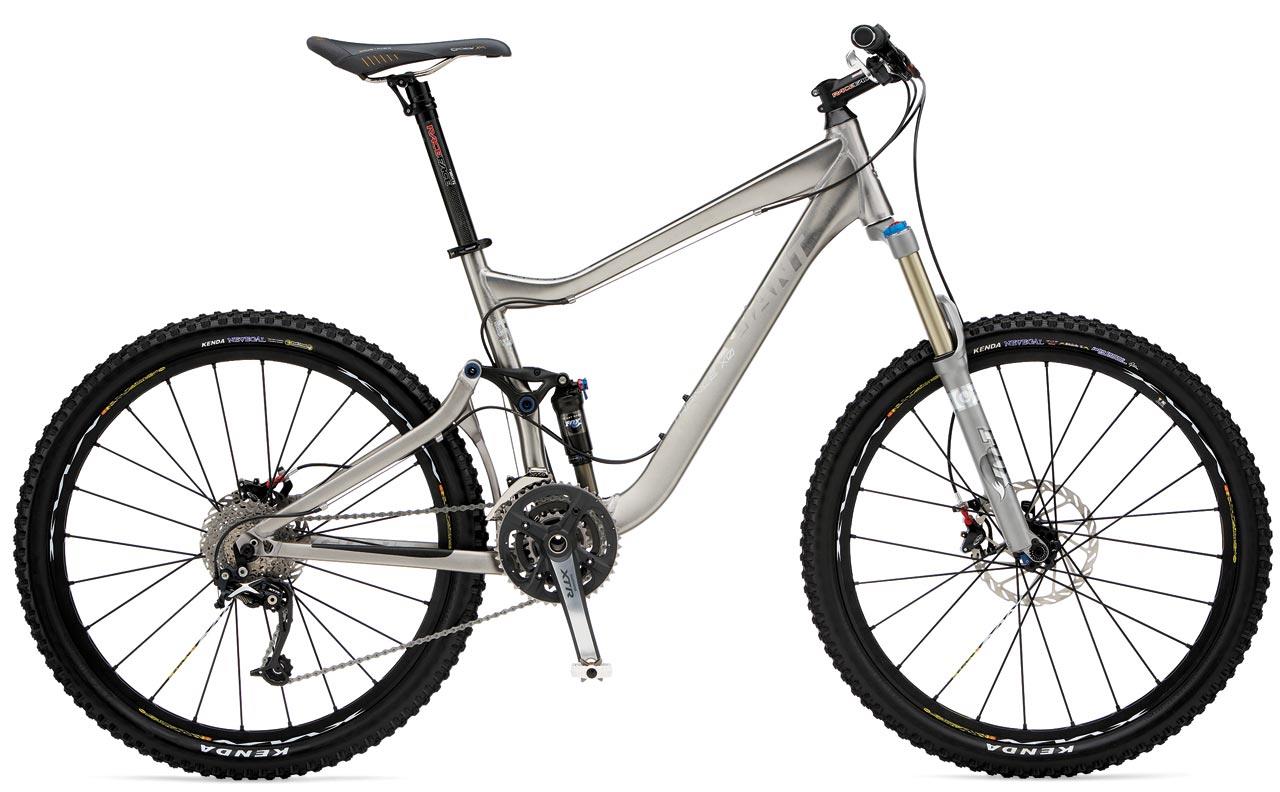

2009 Giant Trance X0
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $5,700.00
- Sizes
- Xsmall, small, medium, large, xlarge
- Colors
- Gray Anodized
- Archive ID
- 16882
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | ALUXX SL aluminum |
| Fork | Fox 32 Talas RLC, 100 - 140mm adjustable travel |
| Fork Material | Single |
| Rear Shock | Fox Float RP23, 5" travel |
Drivetrain
| Component Group | Shimano XTR |
|---|---|
| Shifters | Shimano XTR Rapid Fire |
| Front Derailleur | Shimano XTR |
| Rear Derailleur | Shimano XTR |
| Crankset | Shimano XTR, 22/32/44 teeth |
| Bottom Bracket | Shimano XTR Hollowtech II |
| Cassette | Shimano XTR |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Shimano HG73 |
| Pedals | Crank Brothers Candy 2Ti |
Brakes
| Brakes | Avid Elixir CR Carbon w/180mm rotor front/Avid Elixir CR Carbon w/160mm rotor rear brakes, Avid Elixir CR Carbon levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" |
|---|---|
| Handlebar | Race Face Next SL riser |
| Handlebar Extensions | Not included |
| Stem | Race Face Deus SL 31.8 |
| Saddle | Fi'zi:k Gobi XM |
| Seatpost | Race Face Next SL, 30.9mm diameter |
Wheels & Tires
| Hubs | Front: Mavic CrossMax ST disc w/15mm axle, Rear: Mavic Crossmax ST |
|---|---|
| Rims | Mavic Crossmax ST |
| Front Tire | 26 x 2.1" Kenda Nevagal |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
