Velopedia Bicycle Archive

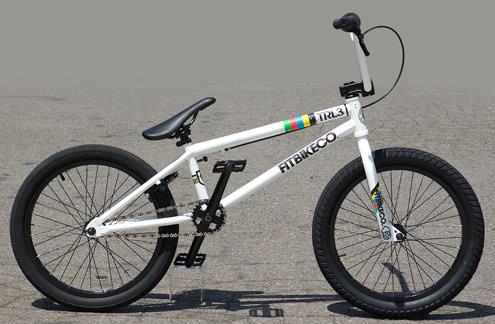

2009 Fit Bike Co. TRL 3
BMX bicycle from the Velopedia specification archive.
- Original MSRP
- $549.99
- Colors
- Flat White, Flat Black
- Weight
- 25.25
- Archive ID
- 15953
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 4130 chromoly |
| Fork | Fit Bike Co. |
| Fork Material | 4130 chromoly, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | BMX |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | 3-Piece Tubular Chromoly 175mm, 25 teeth |
| Bottom Bracket | Sealed Bearing Mid BB |
| Cassette | Sealed Bearing Driver |
| Rear Cogs | 1-speed, 9 teeth |
| Chain | KMC Z410, 1/2 x 1/8" |
| Pedals | S & M 101 |
Brakes
| Brakes | Tektro U-brake rear brakes, Odyssey Monolever rear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA Impact |
|---|---|
| Handlebar | Fit Tig welded 2-pc 4130 HI Bar |
| Handlebar Extensions | Not included |
| Stem | Fit CNC D.I. |
| Saddle | Fit ECCD |
| Seatpost | Steel micro-adjust, 25.4mm diameter |
Wheels & Tires
| Hubs | Front: Alloy Sealed 3/8", Rear: Alloy Sealed Cassette 14mm axle |
|---|---|
| Rims | Alienation Blacksheep, 36-hole |
| Spokes | 14ga. (2.0mm) |
| Spoke Nipples | Brass nipples |
| Front Tire | Front: 20 x 2.25" Fit F.A.F., Rear: 20 x 1.95" Fit F.A.F. |
| Wheel Size | 20" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
