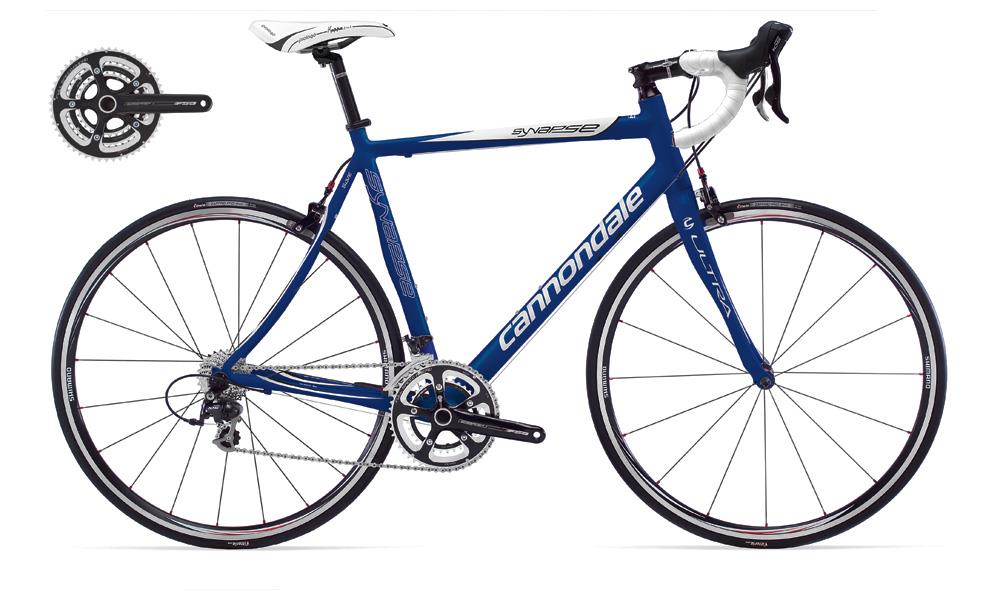

2010 Cannondale Synapse 5 Compact
Road race & triathlon bicycle from the Velopedia specification archive.
- Original MSRP
- $1,449.00
- Sizes
- 48cm, 51cm, 54cm, 56cm, 58cm, 61cm
- Colors
- Indigo Blue w/White/Black Accents, Magnesium White w/Red/Black Accents
- Archive ID
- 20574
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Synapse Hydro Formed S.A.V.E. Alloy |
| Fork | Cannondale Synapse S.A.V.E. carbon |
| Fork Material | Carbon, aero crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano 105 Mix |
|---|---|
| Shifters | Shimano 105 |
| Front Derailleur | Shimano 105, 34.9mm clamp |
| Rear Derailleur | Shimano 105 |
| Crankset | FSA Gossamer Compact, 50/34 teeth |
| Bottom Bracket | FSA Mega EXO |
| Cassette | Shimano 105 |
| Rear Cogs | 10-speed, 12 - 27 teeth |
| Chain | KMC DX10SC |
| Pedals | N/A |
Brakes
| Brakes | Tektro R538 Dual-Pivot brakes, Shimano 105 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated Tange |
|---|---|
| Handlebar | Cannondale C3 |
| Handlebar Extensions | Not included |
| Stem | Cannondale C2 |
| Saddle | Prologo Kappa Pas |
| Seatpost | Cannondale C3 Carbon-wrapped, 27.2mm diameter |
Wheels & Tires
| Hubs | Shimano RS10 |
|---|---|
| Rims | Shimano RS10 |
| Spokes | Shimano RS10 |
| Front Tire | 700 x 23c Vittoria Zaffiro Pro Slick Folding |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
