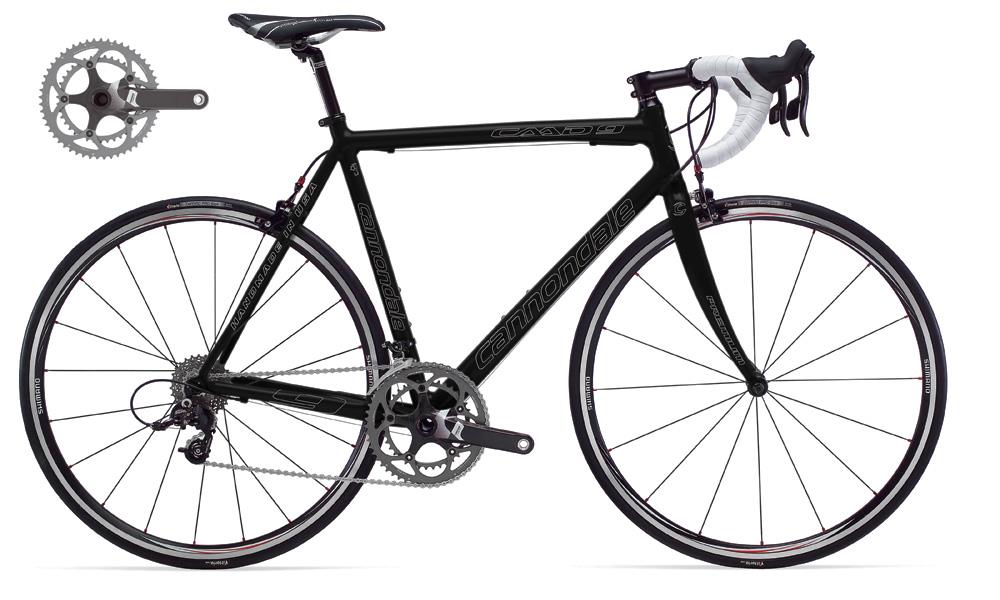

2010 Cannondale CAAD9 4 Double
Road race & triathlon bicycle from the Velopedia specification archive.
- Original MSRP
- $1,799.00
- Sizes
- 48cm, 50cm, 52cm, 54cm, 56cm, 58cm, 60cm, 63cm
- Colors
- Jet Black, Race Red w/White/Black Accents
- Archive ID
- 20536
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | CAAD9 Optimo Taper Butted Alloy |
| Fork | Cannondale Slice Premium |
| Fork Material | Full Carbon, aero crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | SRAM Rival Mix |
|---|---|
| Shifters | SRAM Rival |
| Front Derailleur | SRAM Rival, 34.9mm clamp |
| Rear Derailleur | SRAM Rival |
| Crankset | Sram Force Double, 53/39 teeth |
| Bottom Bracket | SRAM Force BB30 |
| Cassette | SRAM PG-1070 |
| Rear Cogs | 10-speed, 12 - 25 teeth |
| Chain | KMC DX10SC |
| Pedals | N/A |
Brakes
| Brakes | Tektro R580 Dual Pivot brakes, SRAM Rival levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated Tange |
|---|---|
| Handlebar | Control Tech ONE |
| Handlebar Extensions | Not included |
| Stem | Cannondale C2 |
| Saddle | Prologo Kappa Pas |
| Seatpost | Cannondale C2 Carbon, 27.2mm diameter |
Wheels & Tires
| Hubs | Shimano RS10 |
|---|---|
| Rims | Shimano RS10 |
| Spokes | Shimano RS10 |
| Front Tire | 700 x 23c Vittoria Zaffiro Pro Slick Folding |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
