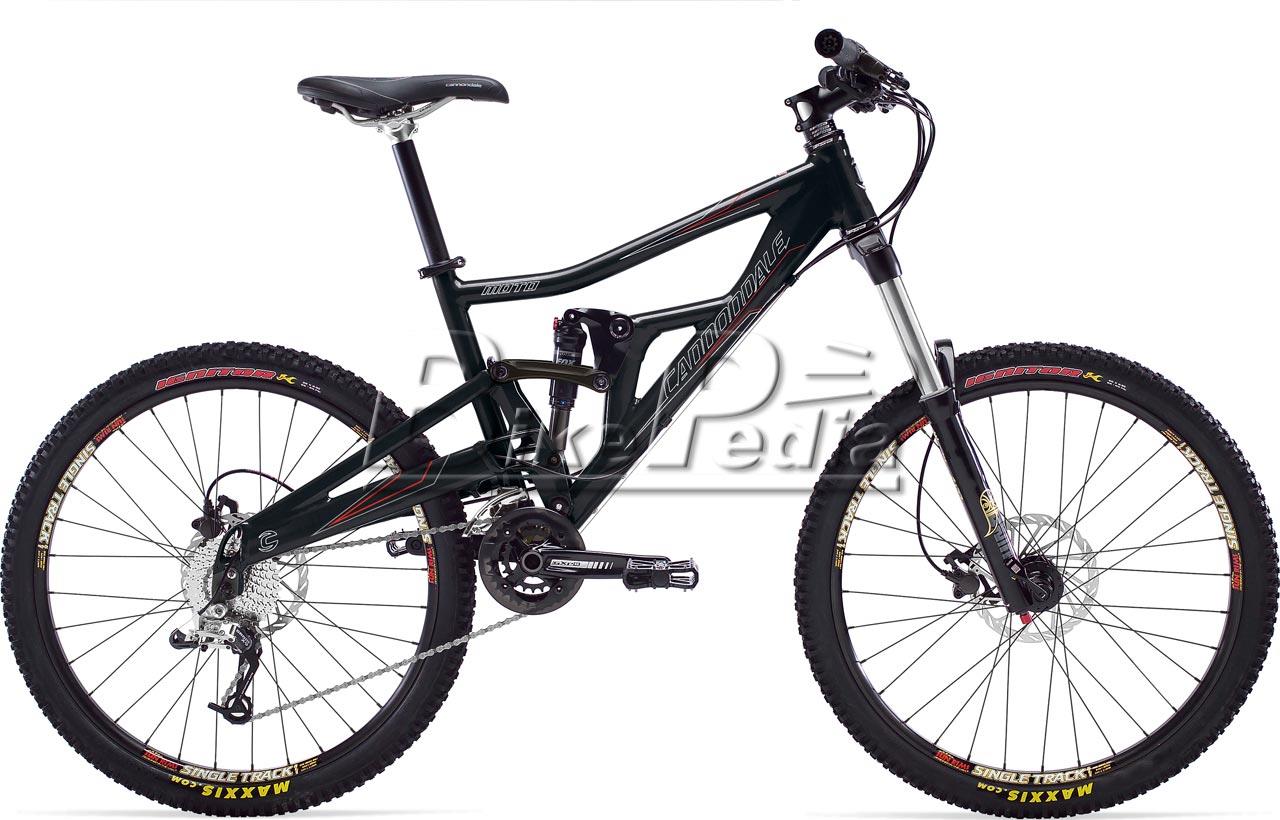

2009 Cannondale Moto 5
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $2,399.99
- Sizes
- Small, medium, large, xlarge
- Colors
- BBQ
- Archive ID
- 17424
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Aluminum |
| Fork | RockShox Domain 302 U-Turn, 115 - 160mm adjustable travel |
| Fork Material | Aluminum/magnesium, single crown |
| Rear Shock | Fox Float R, 160mm travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | SRAM X.5 Trigger |
| Front Derailleur | Shimano Deore |
| Rear Derailleur | SRAM X.9 |
| Crankset | SRAM GXP2, 22/32/44 teeth |
| Bottom Bracket | SRAM GXP |
| Cassette | Shimano HG50 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Shimano Nine Speed |
| Pedals | Cannondale Grind EX Platform |
Brakes
| Brakes | Hayes Stroker Ryde w/185 or 203mm rotor front/Hayes Stroker Ryde w/185mm rotor rear brakes, Hayes Stroker Ryde Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/2" FSA Orbit Extreme |
|---|---|
| Handlebar | FSA XC-281AOS Riser |
| Handlebar Extensions | Not included |
| Stem | Cannondale XC3 |
| Saddle | Cannondale Co2 w/chromoly rails |
| Seatpost | Cannondale Alloy, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Thru-20, Rear: Shimano M475 disc |
|---|---|
| Rims | Sun Single Track SL Disc, 32-hole |
| Spokes | MACH 1 stainless steel |
| Front Tire | 26 x 2.35" Maxxis Ignitor |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
