Velopedia Bicycle Archive

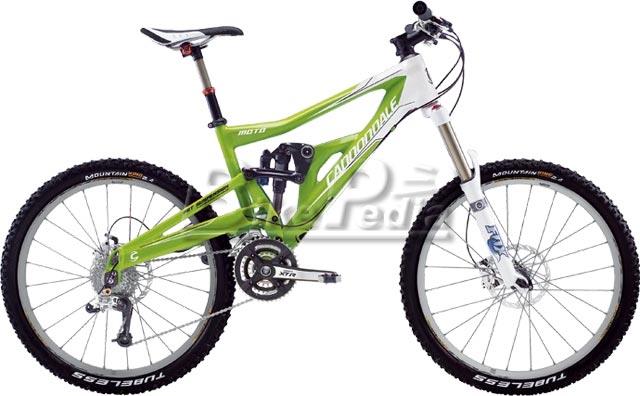

2009 Cannondale Moto 1
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $6,499.99
- Sizes
- Small, medium, large, xlarge
- Colors
- Berserker Green
- Weight
- 30.4
- Archive ID
- 14962
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded/Monocoque |
|---|---|
| Frame Material | High Modulus carbon fiber/aluminum |
| Fork | Fox 36 Talas RC2, 100 - 160mm adjustable travel |
| Fork Material | Aluminum/magnesium, single crown |
| Rear Shock | Fox DHX 5.0 Air, 160mm travel |
Drivetrain
| Component Group | SRAM X.0/mix |
|---|---|
| Shifters | SRAM X.0 Trigger |
| Front Derailleur | Shimano XT |
| Rear Derailleur | SRAM X.0 |
| Crankset | Shimano XTR HollowTech II, 22/32/44 teeth |
| Bottom Bracket | Shimano Hollowtech II |
| Cassette | Shimano XTR |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Shimano Nine Speed |
| Pedals | Crank Brothers Smarty |
Brakes
| Brakes | Avid Juicy Carbon w/203 or 185mm Rotor front/Avid Juicy Carbon w/185mm Rotor rear brakes, Avid Juicy Carbon levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/2" Moto Integrated |
|---|---|
| Handlebar | FSA K-Force Carbon OS Riser |
| Handlebar Extensions | Not included |
| Stem | Cannondale XC3 |
| Saddle | Fi'zi:k Gobi XM w/kiu:m rails |
| Seatpost | Thomson Elite, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Mavic CrossMax SX UST 20mm Thru-axle, Rear: Mavic CrossMax SX UST 12mm Thru-axle |
|---|---|
| Rims | Mavic CrossMax SX UST |
| Spokes | Mavic |
| Front Tire | 26 x 2.40" Continental Mountain King UST |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
