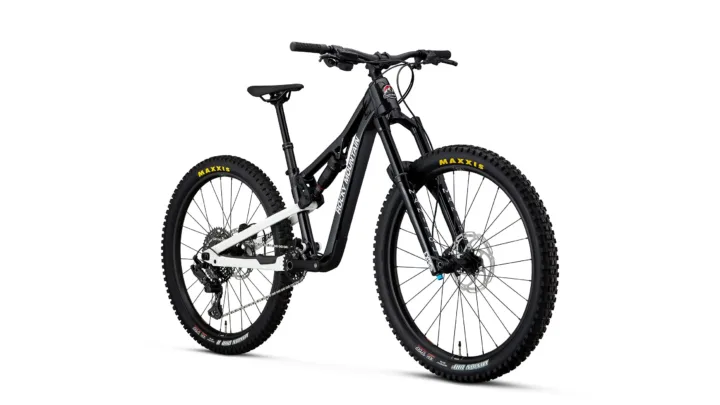

2025 Rocky Mountain Reaper 26

Original specifications: 26" wheels · geometry for 1 published size.

Share owner experience

Selling this bike? Create a shareable bike record

At a glance

Model year
2025
Category
Kids
Original MSRP
$3,199.00
Sizes
One Size
Colors
Grey/White
Geometry
1 manufacturer size
In this record
21 specifications · 2 archived images · original MSRP · geometry
Archive ID
900000731
Original buildAluminum · 26"

Manufacturer catalog

Published sizes and colors

1 size · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

One Size

Published colors

Grey/White

Frameset

Frame ConstructionFORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-2™ Adjustable Geometry | 130mm Travel | FORM™ Alloy Rear Triangle
Frame MaterialAluminum
ForkManitou JUNIT 34 Expert 140mm | 26" = 41mm Offset
Rear ShockRockShox Deluxe Select | Sealed Bearing Eyelet | 20x8mm F Hardware | 190x45mm

Drivetrain

ShiftersMicroShift Advent X 10spd
Rear DerailleurMicroShift Advent X 10spd With Clutch
CranksetRocky Mountain Microdrive 2PC | 30T | 104mm Asymmetrical BCD | 24mm Spindle | Crank Length = 155mm
CassetteSunrace CSMS2 11-46T
ChainKMC X10-1

Brakes

BrakesTektro HD-J2820 | Short Reach Lever | Shimano Pad Compatible

Cockpit & Contact Points

HeadsetFSA ZS56/66 Reach Adjust | 5mm Cups Installed | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race
HandlebarRocky Mountain Jr | 640mm Width | 25mm rise | 9° Backsweep | 5° Upsweep | 31.8 | For 19mm Grips
StemRocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm
SaddleRocky Mountain Kids
SeatpostTranz X +RAD1.0 Adjustable Dropper Post | 30mm Adjustment | Alloy Clamp Lever | 30.9mm | 125mm

Wheels & Tires

HubsFront: Shimano TC500 | 15mm Boost; Rear: Shimano TC500 Boost 148mm
RimsWTB KOM Team i30 TCS 2.0 | 28H
Spokes2.0 Stainless
Front TireMaxxis Minion DHF 2.5 WT EXO Tubeless Ready
Rear TireMaxxis Minion DHR II 2.4 WT EXO Tubeless Ready
Wheel Size26"

Geometry

1 size · 11 measurements

Frame measurements by size.

All geometry measurements1 size · 11 measurements
Measurementkids
Seat tube315 mm
Effective top tube492 mm
Head tube105 mm
Head-tube angle64°
Seat-tube angle76.4°
Chainstay / rear center417 mm
Wheelbase1083 mm
Bottom-bracket drop16 mm
Reach355 mm
Stack563 mm
Standover height749 mm

Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.

Gearing

Chainring ÷ rear sprocket

Lower ratios provide more mechanical advantage for climbing. Higher ratios turn the rear wheel farther with each crank revolution.

All published sizes30T · 11–46T · 10-speed
Lowest0.65:1 Highest2.73:1 Total range418%
